Embedded Mount Android Panel PC
Home - Products - Industrial Touch Android Panel PC - Embedded Mount Android Panel PC - 12 inch tablet 8G 64G Support RFID QR Scan

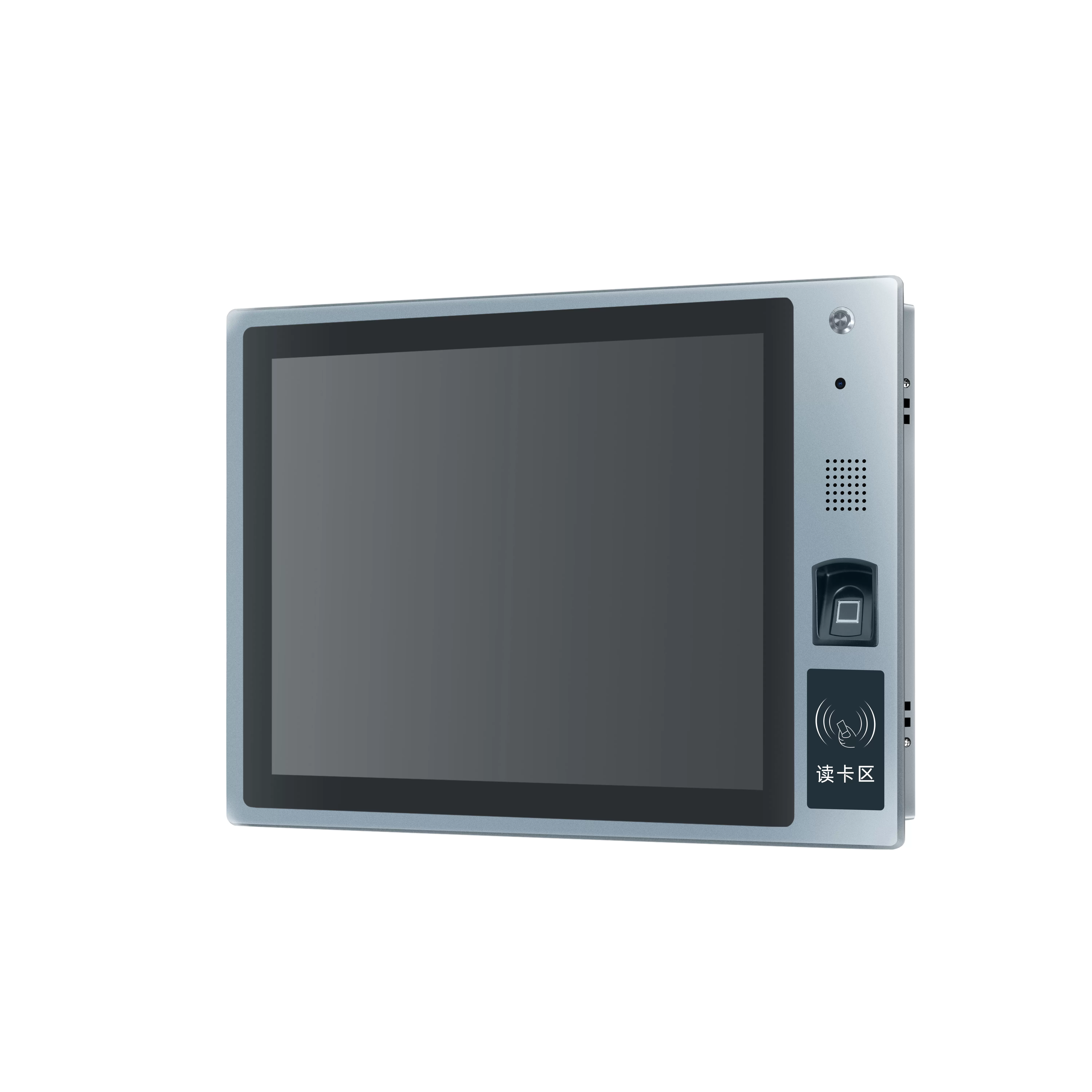

12 inch tablet 8G 64G Support RFID QR Scan

12 inch tablet 8G 64G Support RFID QR Scan

The RK3588 industrial tablet, 12.1 Inch LCD Capacitive Touch Screen,

this Panel PC is a powerful and versatile device designed for industrial applications and smart home control.

With its high-resolution display, powerful processor, capacitive touch screen, and rugged construction,

it offers a comprehensive solution for various needs.

Whether used in industrial settings or for smart home control,

this embedded stock panel PC delivers exceptional performance and reliability.

Can custom the RFID, QR code scan


Inquire Now
Product Introduction PRODUCT SPECIFICATIONS ORDERING INFORMATION

PRODUCT INTRODUCTION

Style Z touch Panel PC is a model of industrial fanless embedded monitor designed based on a capacitive touch screen Panel PC.

It has tough characteristics such as dustproof, waterproof, and oil resistant.

The display screen is available in 7, 8, 10.1, 10.4, 12.1, 15, 15.6, 17, 19 and 21.5 inches.


You can choose bigger 12.1 inch or 15 inch.

There's the size chart.

12 Inch Industrial Touch Screen Aio Panel Pc

Advantages

1. Industrial Grade Components and Fanless Designs

2. Frontal panel reach IP65 waterproof and dust-proof

3. Capacitive touch screen design (G+G), support 10-point touch

4. LED back light,  Brightness 300nit.(1000nit optional)

5. Aluminum Alloy material shell, sturdy and durable, anti-corrosion

6. Suitable for embedded mounting/ wall-mounting/ VESA mounting

7. Multi-I/O connection: VGA,HDMI,USB,COM,LAN,AUDIO(support customized)

8. Suitable for various of application industry


PRODUCT SPECIFICATIONS

Basic Parameter

Sizes 12.1 inches
Resolution1024*768
Back lightLED
Brightness 300nits
Dynamic contrast1000:1
Touch screenCapacitive touch
Touch point   10-point touch
Respond Time  ≤5ms
Luminousness 85±5%
Surface Hardness 6H
Click Lifetime 50 millions times
Viewing AngleR/L:65(Typ.), U/D:65(Typ)
Communication InterfaceUSB interface
Operating System
Linux/Windows 7/8/10 32/64bit
ProcessorIntel Celeron J1900 (I3/I5/I7 optional)
RAM4GB DDR3 (8/16/32/64GB optional)
ROM64GB SSD (128GB/215GB/512GB/1TB optional)


I/O Interface

USB4*USB
Display out1*VGA, 1*HDMI
LAN        1*RJ45(Gigabit Ethernet)
COM
2*COM(RS232/RS485/RS422)
Audio 1*Line-out,1*Mic-in
Power12V DC power input


Environmental Parameters

Operating Temperature-10－+60
Storage Temperature        -20－+70
Relative Humidity20%－90%


General Parameters

Outline Dimension  309*248.6*47mm(L*W*H)
Display Dimension 247*186.6mm(L*W)
Hole Size 297*236.6mm(L*W)
Shell Material Front panel aluminum alloy + metal middle cover + aluminum alloy rear cover
Installation TypeEmbedded,Wall-Mounted,Desktop,VESA


Optional Configuration

CPU Optional
Intel Celeron: J1800/J1900/J4125/J6412
Intel Core : I3/I5/I7-4th~11th Gen
RAM Optional
4GB/8GB/16GB/32GB/64GB
ROM Optional
64GB/128GB/256GB/512GB/1TB SSD


ORDERING INFORMATION

Free accessories

AccessoryDescription
Embedded buckle           4 pcs of embedded buckles+ 4 pcs of screws
Adapter1 pcs of 12V/5A adapter
Power cord1 pcs of 1.5m
HDMI cable1 pcs of 1.5m
Touch pen1 pcs

Optional accessories

AccessoryDescription
Power cord                     1 pcs of 3m/5m
Wall-mount plate1 pcs of wall-mount plate
Desktop stand1 pcs of desktop stand
