Embedded Mount Android Panel PC
Home - Products - Industrial Touch Android Panel PC - Embedded Mount Android Panel PC - 15 Inches Embedded Mount Industrial Touch Android Panel PC ZPC150-Z123

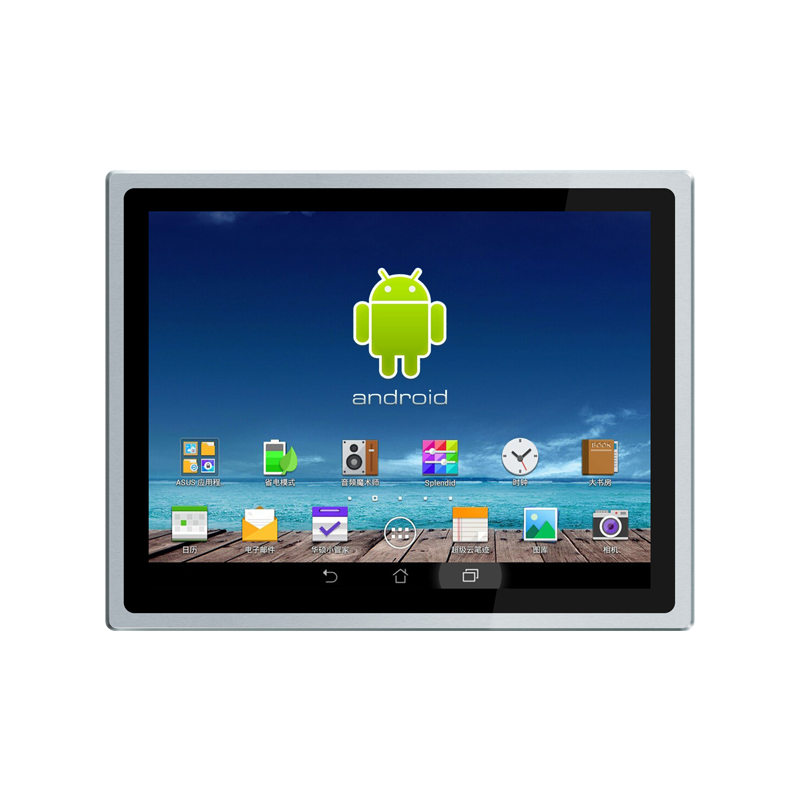

15 Inches Embedded Mount Industrial Touch Android Panel PC ZPC150-Z123

Industrial grade front panel IP65 waterproof dust-proof 10-point touch capacitive touch 1024*768 resolution embedded Panel PC.


Advantages

1. Industrial Grade Components and Fanless Designs

2. Frontal panel reach IP65 waterproof and dust-proof

3. Capacitive touch screen design (G+G), support 10-point touch

4. LED back light,  Brightness 300nit.(1000nit optional)

5. Aluminum Alloy material shell, sturdy and durable, anti-corrosion

6. Suitable for embedded mounting/ wall-mounting/ VESA mounting

7. Multi- I/O connection: HDMI,USB, LAN, SIM slot, TF card slot, DC port, Audio (support customized)

8. Suitable for various of application industry


Product Introduction PRODUCT SPECIFICATIONS ORDERING INFORMATION Data download

PRODUCT INTRODUCTION

Style Z touch Panel PC is a model of industrial fanless embedded designed based on a capacitive touch screen Panel PC. It has tough characteristics such as dustproof, waterproof, and oil resistant. The display screen is available in 7, 8, 10.1, 10.4, 12.1, 15, 15.6, 17, 19 and 21.5 inches.



PRODUCT SPECIFICATIONS

Basic Parameter

Sizes 15 inches
Resolution1024*768
Back lightLED
Brightness 300nits
Dynamic contrast1000:1
Touch screenCapacitive touch
Touch point   10-point touch
Respond Time  ≤5ms
Luminousness 85±5%
Surface Hardness 6H
Click Lifetime 50 millions times
Viewing AngleR/L:65(Typ.), U/D:65(Typ)
Communication InterfaceUSB interface
Operating System
Android 7.1/8.1/9/11/12
ProcessorRK3288 (RK3399/RK3568/A311D optional)
RAM2GB (4GB/8GB optional)
ROM8GB eMMC (16GB/32GB/64GB optional)


I/O Interface

USB2*USB
Display out1*HDMI
LAN        1*RJ45(Gigabit Ethernet)
4G LTE1*SIM slot(4G module optional)
Extended storage1*TF card slot
Audio 1*Line-out
Power12V DC power input


Environmental Parameters

Operating Temperature-10-+60
Storage Temperature        -20-+70
Relative Humidity20%-90%


General Parameters

Outline Dimension  362*286*48mm(L*W*H)
Display Dimension 304*228mm(L*W)
Hole Size 350*274mm(L*W)
Shell Material Front panel aluminum alloy + metal middle cover + aluminum alloy rear cover
Installation TypeEmbedded,Wall-Mounted,Desktop,VESA


Optional Configuration

Motherboard OptionalRK3288RK3399A311D RK3568
Version OptionalAndroid 7.1Android 8.1/9/11Android 9Android 11/12
RAM Optional
2GB/4GB2GB/4GB
4GB/8GB
ROM Optional(eMMC)8GB/16GB/32GB16GB/32GB/64GB
16GB/32GB/64GB


ORDERING INFORMATION

Free accessories

AccessoryDescription
Embedded buckle           4 pcs of embedded buckles+ 4 pcs of screws
Adapter1 pcs of 12V/5A adapter
Power cord1 pcs of 1.5m
HDMI cable1 pcs of 1.5m
Touch pen1 pcs

Optional accessories

AccessoryDescription
Power cord                     1 pcs of 3m/5m
Wall-mount plate1 pcs of wall-mount plate
Desktop stand1 pcs of desktop stand


DATA DOWNLOAD
