Industrial grade optical bonding LCD Touch screen Wall mounted monitor Panel all In one pc,support android,windows.
Advantages
Interface Type: SD/TF/DC Power, 2x USB/LAN
CPU: Onboard RK3288 28nm Quad core ARM A17 1.8 GHz
Memory: 2GB/4G/8G DDR3
Hard disk: 16GB/64G/128G/256G/512G/1T SSD
Material of case: Aluminum Alloy
Resolution: 1920*1080
Brightness: 300cd/m2(Typ)
Contrast: 1000:1
Products Status: Stock
Type: Panel PC
PRODUCT INTRODUCTION

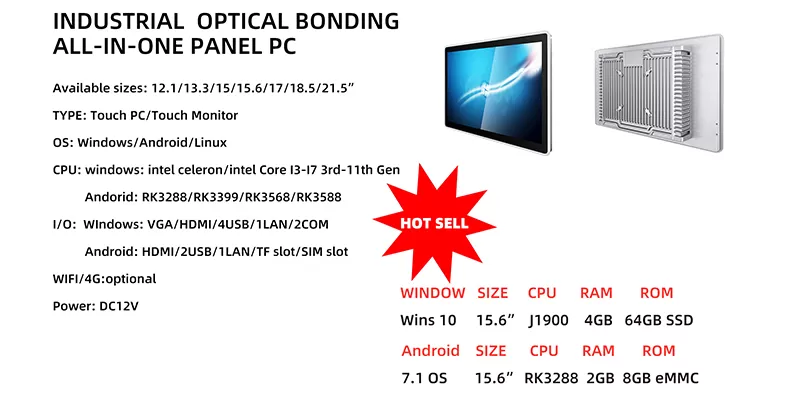

Less than $300 all in one capacitive touch PC 1920*1080 Android RK3288 panel 21.5 inch touch panel pc
Style G touch panel computer is model of Android tablets mounted to the wall
which is optical bonding with no air gap between touch screen and LCD screen, has less reflect and higher definition.
It has tough characteristics such as dustproof, waterproof, and oil resistant.
The display screen is available in 12.1, 13.3, 15, 15.6, 17, 18.5,19 and 21.5 inches.
Designed for industrial environments, this optical bonding touch panel pc is built to withstand challenging conditions.
Its rugged construction ensures durability and reliability, making it suitable for use in demanding settings.
It is resistant to dust, water, and other contaminants, ensuring uninterrupted operation even in harsh conditions.
PRODUCT SPECIFICATIONS
Basic Parameter
| Sizes | 21.5 inches |
| Resolution | 1920*1080 |
| Back light | LED |
| Brightness | 300nits |
| Dynamic contrast | 1000:1 |
| Touch screen | Capacitive touch (GFF) |
| Touch point | 10-point touch |
| Respond Time | ≤5ms |
| Luminousness | 85±5% |
| Surface Hardness | 6H |
| Click Lifetime | 50 millions times |
| Viewing Angle | R/L:65(Typ.), U/D:65(Typ) |
| Communication Interface | USB interface |
| Operating System | Linux/Windows 7/8/10 32/64bit |
| Processor | Intel Celeron J1900 (I3/I5/I7 optional) |
| RAM | 4GB DDR3 (8/16/32/64GB optional) |
| ROM | 64GB SSD (128GB/215GB/512GB/1TB optional) |
I/O Interface
| USB | 4*USB |
| Display out | 1*VGA, 1*HDMI |
| LAN | 1*RJ45(Gigabit Ethernet) |
| COM | 2*COM(RS232/RS485/RS422) |
| Audio | 1*Line-out,1*Mic-in |
| Power | 12V DC power input |
Environmental Parameters
| Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ |
| Relative Humidity | 20%－90% |
General Parameters
| Outline Dimension | 518*310*48mm(L*W*H) |
| Display Dimension | 476.6*268.3mm(L*W) |
| Hole Size | 510*302mm(L*W) |
| Shell Material | Front panel aluminum alloy + metal middle cover + aluminum alloy rear cover |
| Installation Type | Embedded,Wall-Mounted,Desktop,VESA |
Optional Configuration
| CPU Optional | ||||
| Intel Celeron: J1800/J1900/J4125/J6412 | ||||
| Intel Core: I3/I5/I7-4th~11th Gen | ||||
| RAM Optional | ||||
| 4GB/8GB/16GB/32GB/64GB | ||||
| ROM Optional | ||||
| 64GB/128GB/256GB/512GB/1TB SSD |
ORDERING INFORMATION
Free accessories
| Accessory | Description |
| Embedded buckle | 4 pcs of embedded buckles+ 4 pcs of screws |
| Adapter | 1 pcs of 12V/5A adapter |
| Power cord | 1 pcs of 1.5m |
| HDMI cable | 1 pcs of 1.5m |
| Touch pen | 1 pcs |
Optional accessories
| Accessory | Description |
| Power cord | 1 pcs of 3m/5m |
| Wall-mount plate | 1 pcs of wall-mount plate |
| Desktop stand | 1 pcs of desktop stand |
