ZHICHUN Industrial computer 17 Inch 1280*1024 IP65 waterproof dust-proof 10-point touch capacitive touch embedded Panel PC.

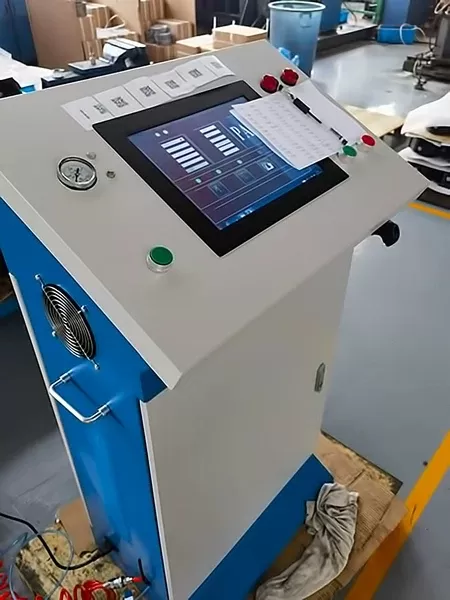

Widely use to embed in touch device like automation machine, industrial control robot, measuring instruments.
Advantages
1. Industrial Grade Components and Fanless Designs
2. Frontal panel reach IP65 waterproof and dust-proof
3. Capacitive touch screen design (G+G), support 10-point touch
4. LED back light, brightness 300nit.(1000nit optional)
5. Plastic middle shell + aluminum rear shell , light and fashion. sturdy and durable
6. Suitable for build-in mounting/ wall-mounting/ VESA mounting
7. Multi-I/O connection: HDMI,USB, LAN, SIM slot, TF card slot, DC port, Audio (support customized)
8. Suitable for various of application industry
PRODUCT INTRODUCTION
Style S touch Panel PC is a model of industrial fanless open frame designed based on a capacitive touch screen Panel PC.
It has tough characteristics such as dustproof, waterproof, and oil resistant.
The display screen is available in 7, 10.1, 11.6, 13.3, 14, 15, 15.6, 17, 17.3, 18.5, 19, 21.5, 23.6, 27 and 32 inches.
15inch, 17inch, 19inch is the square touch screen panel pc. Highly recorment by industrial manufacturer.
PRODUCT SPECIFICATIONS
Basic Parameter
| Sizes | 17 inches |
| Resolution | 1280*1024 |
| Back light | LED |
| Brightness | 300nits |
| Dynamic contrast | 1000:1 |
| Touch screen | Capacitive touch |
| Touch point | 10-point touch |
| Respond Time | ≤5ms |
| Luminousness | 85±5% |
| Surface Hardness | 6H |
| Click Lifetime | 50 millions times |
| Viewing Angle | R/L:65(Typ.), U/D:65(Typ) |
| Communication Interface | USB interface |
| Operating System | Android 7.1/8.1/9/11/12 |
| Processor | RK3288 (RK3399/RK3568/A311D optional) |
| RAM | 2GB (4GB/8GB optional) |
| ROM | 8GB eMMC (16GB/32GB/64GB optional) |
I/O Interface
| USB | 2*USB |
| Display out | 1*HDMI |
| LAN | 1*RJ45(Gigabit Ethernet) |
| 4G LTE | 1*SIM slot(4G module optional) |
| Extended storage | 1*TF card slot |
| Audio | 1*Line-out |
| Power | 12V DC power input |
Environmental Parameters
| Operating Temperature | -10－+60 |
| Storage Temperature | -20－+70 |
| Relative Humidity | 20%－90% |
General Parameters
| Outline Dimension | 384.5*317*45.6mm(L*W*H) |
| Display Dimension | 341.7*269.5mm(L*W) |
| Hole Size | 379*311mm(L*W) |
| Shell Material | Plastic+Metal plate |
| Installation Type | Embedded,Wall-Mounted,Desktop,VESA |
Optional Configuration
| Motherboard Optional | RK3288 | RK3399 | A311D | RK3568 | ||||
| Version Optional | Android 7.1 | Android 8.1/9/11 | Android 9 | Android 11/12 | ||||
| RAM Optional | 2GB/4GB | 2GB/4GB | 4GB/8GB | |||||
| ROM Optional(eMMC) | 8GB/16GB/32GB | 16GB/32GB/64GB | 16GB/32GB/64GB | |||||
ORDERING INFORMATION
Free accessories
| Accessory | Description |
| Embedded buckle | 4 pcs of embedded buckles+ 4 pcs of screws |
| Adapter | 1 pcs of 12V/5A adapter |
| Power cord | 1 pcs of 1.5m |
| HDMI cable | 1 pcs of 1.5m |
| Touch pen | 1 pcs |
Optional accessories
| Accessory | Description |
| Power cord | 1 pcs of 3m/5m |
| Wall-mount plate | 1 pcs of wall-mount plate |
| Desktop stand | 1 pcs of desktop stand |
