Embedded Mount Panel PC
Home - Products - Industrial Touch Windows Panel PC - Embedded Mount Panel PC - 10.1 Inches Embedded Mount Industrial touch Windows panel PC ZPC101-Z122

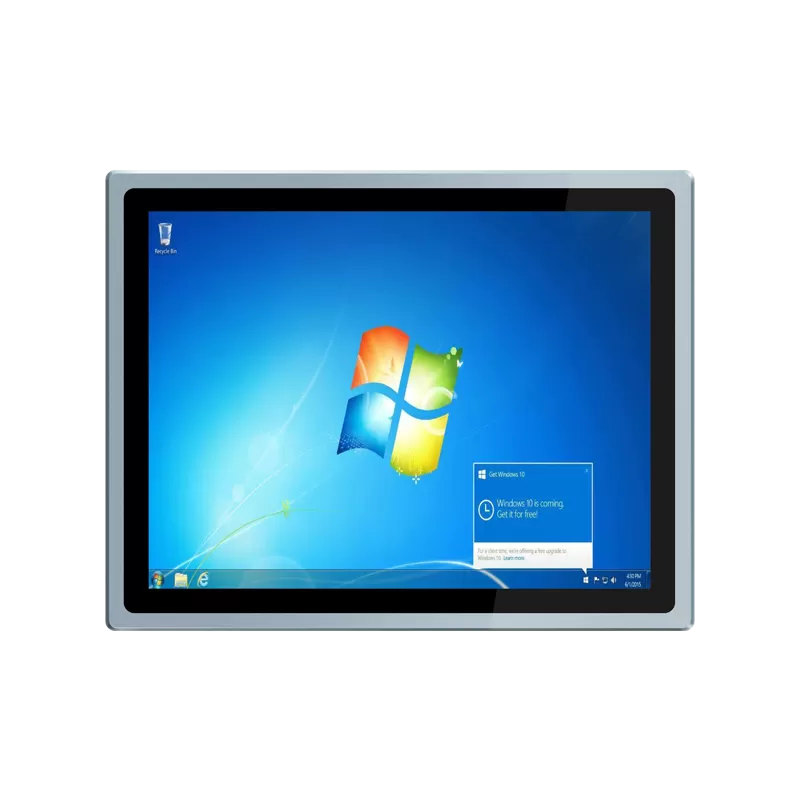

10.1 Inches Embedded Mount Industrial touch Windows panel PC ZPC101-Z122

Industrial grade front panel IP65 waterproof dust-proof 10-point touch capacitive touch 1280*800 resolution embedded Panel PC.


Advantages

1. Industrial Grade Components and Fanless Designs

2. Frontal panel reach IP65 waterproof and dust-proof

3. Capacitive touch screen design (G+G), support 10-point touch

4. LED back light,  Brightness 300nit

5. Aluminum Alloy material shell, sturdy and durable, anti-corrosion

6. Suitable for embedded mounting/ wall-mounting/ VESA mounting

7. Multi-I/O connection: VGA,HDMI,USB,COM,LAN,AUDIO(support customized)

8. Suitable for various of application industry

Product Introduction PRODUCT SPECIFICATIONS ORDERING INFORMATION Data download

PRODUCT INTRODUCTION

Style Z touch Panel PC is a model of industrial fanless embedded designed based on a capacitive touch screen Panel PC.

It has tough characteristics such as dustproof, waterproof, and oil resistant.

The display screen is available in 7, 8, 10.1, 10.4, 12.1, 15, 15.6, 17, 19 and 21.5 inches.

The popular and cheaper size is 15.6 inch and 21.5 inch, because 15.6 inch touch monitor sells a lot.

We got cheaper accessary price.

Feel free to contact us for unit price of each touch monitor panel pc size.


10.1 Inches Embedded Mount Industrial touch Windows panel PC ZPC101-Z122

We produce the industrial monitor and panel pc for very harsh environment.

A lot of Chinese manufactuer choose zhichun industrial pc for their million $ machine.

That's because our quality is stable and robust.

Welcome to place a trial order.


10.1 Inches Embedded Mount Industrial touch Windows panel PC ZPC101-Z122



PRODUCT SPECIFICATIONS

Basic Parameter

Sizes 10.1 inches
Resolution1280*800
Back lightLED
Brightness 300nits
Dynamic contrast1000:1
Touch screenCapacitive touch
Touch point   10-point touch
Respond Time  ≤5ms
Luminousness 85±5%
Surface Hardness 6H
Click Lifetime 50 millions times
Viewing AngleR/L:65(Typ.), U/D:65(Typ)
Communication InterfaceUSB interface
Operating System
Linux/Windows 7/8/10 32/64bit
ProcessorIntel Celeron J1900 (I3/I5/I7 optional)
RAM4GB DDR3 (8/16/32/64GB optional)
ROM64GB SSD (128GB/215GB/512GB/1TB optional)


I/O Interface

USB4*USB
Display out1*VGA, 1*HDMI
LAN        1*RJ45(Gigabit Ethernet)
COM
2*COM(RS232/RS485/RS422)
Audio 1*Line-out,1*Mic-in
Power12V DC power input


Environmental Parameters

Operating Temperature-10-+60
Storage Temperature        -20-+70
Relative Humidity20%-90%


General Parameters

Outline Dimension  275.96*194.6*45mm(L*W*H)
Display Dimension 217.96*136.6mm(L*W)
Hole Size 263*182.6mm(L*W)
Shell Material Front panel aluminum alloy + metal middle cover + aluminum alloy rear cover
Installation TypeEmbedded,Wall-Mounted,Desktop,VESA


Optional Configuration

CPU Optional
Intel Celeron: J1800/J1900/J4125/J6412
Intel Core: I3/I5/I7-4th~11th Gen
RAM Optional
4GB/8GB/16GB/32GB/64GB
ROM Optional
64GB/128GB/256GB/512GB/1TB SSD


ORDERING INFORMATION

Free accessories

AccessoryDescription
Embedded buckle           4 pcs of embedded buckles+ 4 pcs of screws
Adapter1 pcs of 12V/5A adapter
Power cord1 pcs of 1.5m
HDMI cable1 pcs of 1.5m
Touch pen1 pcs

Optional accessories

AccessoryDescription
Power cord                     1 pcs of 3m/5m
Wall-mount plate1 pcs of wall-mount plate
Desktop stand1 pcs of desktop stand


DATA DOWNLOAD
