13.3 1920 X 1080 Inch Hdmi Display ZPC133-S111

13.3 1920 X 1080 Inch Hdmi Display ZPC133-S111

Zhichun style S 13.3 inch touch monitor / all in one pc

give you idea to install in the industrial device and medical device.

It was made by industrial accessary,

quality is durable and and use in harh environment.

Can check the below size picture if ok for your device.


Advantages

1. Industrial Grade Components and Fanless Designs

2. Frontal panel reach IP65 waterproof and dust-proof

3. Capacitive touch screen design (G+G), 10-point touch

4. LED back light,  brightness 300nit

5. Aluminum shell, light and fashion. sturdy and durable

6. Suitable for build-in mounting/ wall-mounting/ VESA mounting

7. Multi-type display input connection: VGA. HDMI, DVI

8. Suitable for various industry applications



Inquire Now
Product Introduction PRODUCT SPECIFICATIONS ORDERING INFORMATION

PRODUCT INTRODUCTION

13.3 inch touch monitor is a model of industrial open frame designed based on a capacitive touch screen monitor.

 It has tough characteristics such as dustproof, waterproof, and oil resistant.

The display screen is available in 7, 10.1, 11.6, 13.3, 14, 15, 15.6, 17, 17.3, 18.5, 19, 21.5, 23.6, 27 and 32 inches.


Below is the szie of 13.3 inch screen monitor/touch pc(mm)


13.3 Inches Open Frame Monitor ZPC133-S111

PRODUCT SPECIFICATIONS

Basic Parameter

Sizes 13.3 inches
Resolution1920*1080
Back lightLED
Brightness 300nits
Dynamic contrast1000:1
Touch screenCapacitive touch
Touch point   10-point touch
Respond Time  ≤5ms
Luminousness 85±5%
Surface Hardness 6H
Click Lifetime 50 millions times
Viewing AngleR/L:65(Typ.), U/D:65(Typ)
Communication InterfaceUSB interface

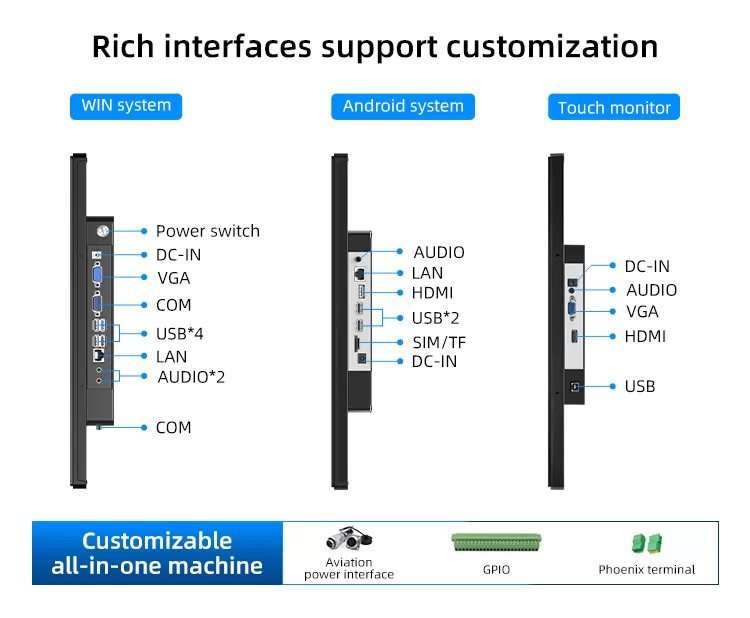

I/O Interface

USB1*USB type-B
HDMI1*HDMI
VGA                                1*VGA
Audio 1*Line-out
Power12V DC power input


Environmental Parameters

Operating Temperature-10－+60
Storage Temperature        -20－+70
Relative Humidity20%－90%


General Parameters


Outline Dimension  336.5*207.7*39.1mm(L*W*H)
Display Dimension 297.2*168.7mm(L*W)
Hole Size 326.3×198mm(L*W)
Shell Material Plastic+Metal plate
Installation TypeEmbedded,Wall-Mounted,Desktop,VESA


ORDERING INFORMATION

Free accessories

AccessoryDescription
Embedded buckle           4 pcs of embedded buckles+ 4 pcs of screws
Adapter1 pcs of 12V/5A adapter
Power cord1 pcs of 1.5m
VGA cable1 pcs of 1.5m
HDMI cable1 pcs of 1.5m
USB-B cable1 pcs of 1.5m
Touch pen1 pcs

Optional accessories

AccessoryDescription
Power cord                     1 pcs of 3m/5m
Wall-mount plate1 pcs of wall-mount plate
Desktop stand1 pcs of desktop stand
