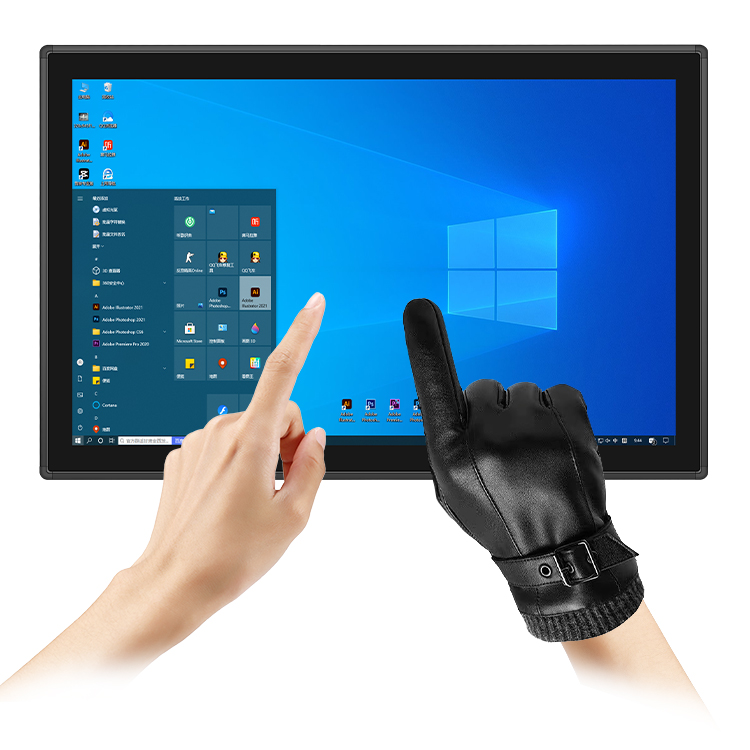

Zhichun industrial grade touch monitor can use in warehouse,laboratory, hospital for people who operate with gloves
PRODUCT INTRODUCTION
Style S touch Panel PC is a model of industrial fanless open frame designed based on a capacitive touch screen Panel PC.
It has tough characteristics such as dustproof, waterproof, and oil resistant.
The display screen is available in 7, 10.1, 11.6, 13.3, 14, 15, 15.6, 17, 17.3, 18.5, 19, 21.5, 23.6, 27 and 32 inches.
These industrial touchscreen monitors may be mounted into control cabinets, integrated onto an OEM machine, or used in a manufacturing environment.
This touch monitor can be panel mounted into a cutout in an enclosure or it can be mounted to an arm, stand, or hung on a surface.
When panel mounted, the front bezel is IP65 waterproof and dustproof which protected from liquids and dust.
The zhichun industrial display can be can be connected to a fanless box PC, for a rugged, long-life solution,
or to another touchscreen PC, where it can operate as a cloned or extended display.
PRODUCT SPECIFICATIONS
Basic Parameter
| Sizes | 17.3 inches |
| Resolution | 1920*1080 |
| Back light | LED |
| Brightness | 300nits |
| Dynamic contrast | 1000:1 |
| Touch screen | Capacitive touch |
| Touch point | 10-point touch |
| Respond Time | ≤5ms |
| Luminousness | 85±5% |
| Surface Hardness | 6H |
| Click Lifetime | 50 millions times |
| Viewing Angle | R/L:65(Typ.), U/D:65(Typ) |
| Communication Interface | USB interface |
| Operating System | Linux/Windows 7/8/10 32/64bit |
| Processor | Intel Celeron J1900 (I3/I5/I7 optional) |
| RAM | 4GB DDR3 (8/16/32/64GB optional) |
| ROM | 64GB SSD (128GB/215GB/512GB/1TB optional) |

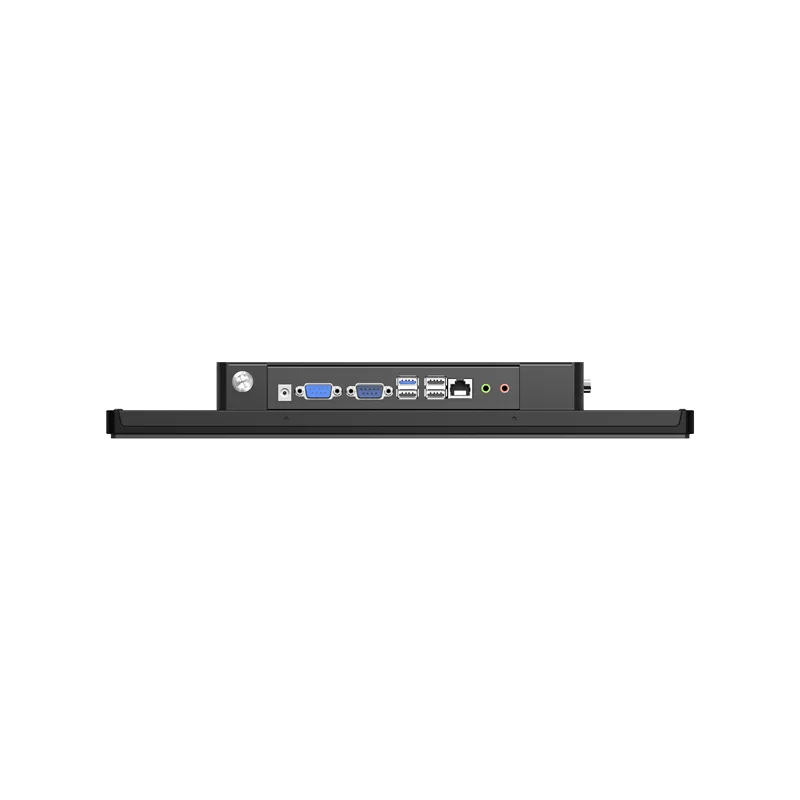

I/O Interface
| USB | 4*USB |
| Display out | 1*VGA, 1*HDMI |
| LAN | 1*RJ45(Gigabit Ethernet) |
| COM | 2*COM(RS232/RS485/RS422) |
| Audio | 1*Line-out,1*Mic-in |
| Power | 12V DC power input |
Environmental Parameters
| Operating Temperature | -10－+60 |
| Storage Temperature | -20－+70 |
| Relative Humidity | 20%－90% |
General Parameters
| Outline Dimension | 429.96*263.16*40mm(L*W*H) |
| Display Dimension | 383*216mm(L*W) |
| Hole Size | 425.29*258.29mm(L*W) |
| Shell Material | Plastic+Metal plate |
| Installation Type | Embedded,Wall-Mounted,Desktop,VESA |
Optional Configuration
| CPU Optional | ||||
| Intel Celeron: J1800/J1900/J4125/J6412 | ||||
| Intel Core: I3/I5/I7-4th~11th Gen | ||||
| RAM Optional | ||||
| 4GB/8GB/16GB/32GB/64GB | ||||
| ROM Optional | ||||
| 64GB/128GB/256GB/512GB/1TB SSD |
ORDERING INFORMATION
Free accessories
| Accessory | Description |
| Embedded buckle | 4 pcs of embedded buckles+ 4 pcs of screws |
| Adapter | 1 pcs of 12V/5A adapter |
| Power cord | 1 pcs of 1.5m |
| HDMI cable | 1 pcs of 1.5m |
| Touch pen | 1 pcs |
Optional accessories
| Accessory | Description |
| Power cord | 1 pcs of 3m/5m |
| Wall-mount plate | 1 pcs of wall-mount plate |
| Desktop stand | 1 pcs of desktop stand |
