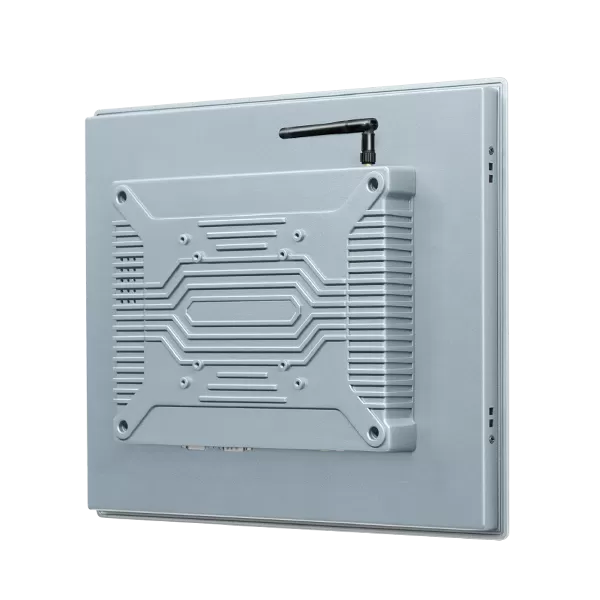

Industrial grade front panel IP65 waterproof dust-proof 10-point touch capacitive touch 1280*1024 resolution embedded Panel PC.
Advantages
1. Industrial Grade Components and Fanless Designs.
2. Frontal panel reach IP65 waterproof and dust-proof.
3. Capacitive touch screen design (G+G), support 10-point touch.
4. LED back light, Brightness 300nit.(1000nit optional).
5. Aluminum Alloy material shell, sturdy and durable, anti-corrosion
6. Suitable for embedded mounting/ wall-mounting/ VESA mounting
7. Multi-I/O connection: VGA,HDMI,USB,COM,LAN,AUDIO(support customized)
8. Front USB port and front power switch button, more convenience to use.
9. Suitable for various of application industry.
PRODUCT INTRODUCTION
Style J touch Panel PC is a customized model of style Z touch Panel PC. It has the same characteristics as style Z, such as dustproof, waterproof, and oil resistant. It has customized USB port and power switch button in front which is more convenience to use. The display screen is available in 10.1, 12.1, 13.3, 15, 15.6, 17 inches.
PRODUCT SPECIFICATIONS
Basic Parameter
| Sizes | 17 inches |
| Resolution | 1280*1024 |
| Back light | LED |
| Brightness | 300nits |
| Dynamic contrast | 1000:1 |
| Touch screen | Capacitive touch |
| Touch point | 10-point touch |
| Respond Time | ≤5ms |
| Luminousness | 85±5% |
| Surface Hardness | 6H |
| Click Lifetime | 50 millions times |
| Viewing Angle | R/L:65(Typ.), U/D:65(Typ) |
| Communication Interface | USB interface |
| Operating System | Linux/Windows 7/8/10 32/64bit |
| Processor | Intel Celeron J1900 (I3/I5/I7 optional) |
| RAM | 4GB DDR3 (8/16/32/64GB optional) |
| ROM | 64GB SSD (128GB/215GB/512GB/1TB optional) |
I/O Interface
| USB | 5*USB(1*front USB2.0) |
| Display out | 1*VGA, 1*HDMI |
| LAN | 1*RJ45(Gigabit Ethernet) |
| COM | 2*COM(RS232/RS485/RS422) |
| Audio | 1*Line-out,1*Mic-in |
| Power | 12V DC power input |
Environmental Parameters
| Operating Temperature | -10－+60 ℃ |
| Storage Temperature | -20－+70 ℃ |
| Relative Humidity | 20%－90% |
General Parameters
| Outline Dimension | 400.92*333.34*50mm(L*W*H) |
| Display Dimension | 338.92*271.34mm(L*W) |
| Hole Size | 389*321.4mm(L*W) |
| Shell Material | Front panel aluminum alloy + metal middle cover + aluminum alloy rear cover |
| Installation Type | Embedded,Wall-Mounted,Desktop,VESA |
Optional Configuration
| CPU Optional | ||||
| Intel Celeron: J1800/J1900/J4125/J6412 | ||||
| Intel Core: I3/I5/I7-4th~11th Gen | ||||
| RAM Optional | ||||
| 4GB/8GB/16GB/32GB/64GB | ||||
| ROM Optional | ||||
| 64GB/128GB/256GB/512GB/1TB SSD |
ORDERING INFORMATION
Free accessories
| Accessory | Description |
| Embedded buckle | 4 pcs of embedded buckles+ 4 pcs of screws |
| Adapter | 1 pcs of 12V/5A adapter |
| Power cord | 1 pcs of 1.5m |
| HDMI cable | 1 pcs of 1.5m |
| Touch pen | 1 pcs |
Optional accessories
| Accessory | Description |
| Power cord | 1 pcs of 3m/5m |
| Wall-mount plate | 1 pcs of wall-mount plate |
| Desktop stand | 1 pcs of desktop stand |
