For HDMI touch screen kiosk, support android,windows.
LCD Size: 21.5 inch
CPU: Quad-core Cortex-A17
Memory: 2GB DDR3
Flash: 8GB EMMC(16 as option)
Resolution: 1920*1080
Touch Screen: Capacitive touch screen
Defend degree: IP65
Operating System: Android 8.1.0
Application Area: industrial automation ;industrial control
Products Status: Stock
Type: Embedded Computer
PRODUCT INTRODUCTION

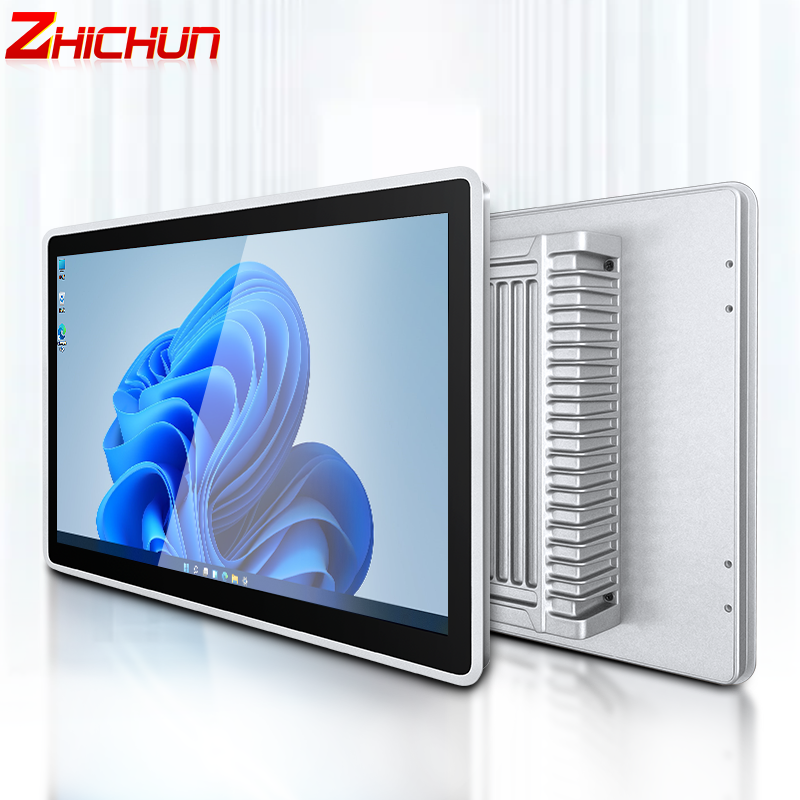

Style G touch Panel PC Kiosk is model of industrial fanless embedded designed based on new touch screen technology—GFF touch screen,
which is optical bonding with no air gap between touch screen and LCD screen, has less reflect and higher definition.
It has tough characteristics such as dustproof, waterproof, and oil resistant.
The display screen is available in 12.1, 13.3, 15, 15.6, 17, 18.5,19 and 21.5 inches.
Designed for industrial environments, this optical bonding touch panel pc is built to withstand challenging conditions.
Its rugged construction ensures durability and reliability, making it suitable for use in demanding settings.
It is resistant to dust, water, and other contaminants, ensuring uninterrupted operation even in harsh conditions.
PRODUCT SPECIFICATIONS
Basic Parameter
| Sizes | 21.5 inches |
| Resolution | 1920*1080 |
| Back light | LED |
| Brightness | 300nits |
| Dynamic contrast | 1000:1 |
| Touch screen | Capacitive touch (GFF) |
| Touch point | 10-point touch |
| Respond Time | ≤5ms |
| Luminousness | 85±5% |
| Surface Hardness | 6H |
| Click Lifetime | 50 millions times |
| Viewing Angle | R/L:65(Typ.), U/D:65(Typ) |
| Communication Interface | USB interface |
| Operating System | Linux/Windows 7/8/10 32/64bit |
| Processor | Intel Celeron J1900 (I3/I5/I7 optional) |
| RAM | 4GB DDR3 (8/16/32/64GB optional) |
| ROM | 64GB SSD (128GB/215GB/512GB/1TB optional) |
I/O Interface
| USB | 4*USB |
| Display out | 1*VGA, 1*HDMI |
| LAN | 1*RJ45(Gigabit Ethernet) |
| COM | 2*COM(RS232/RS485/RS422) |
| Audio | 1*Line-out,1*Mic-in |
| Power | 12V DC power input |
Environmental Parameters
| Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ |
| Relative Humidity | 20%－90% |
General Parameters
| Outline Dimension | 518*310*48mm(L*W*H) |
| Display Dimension | 476.6*268.3mm(L*W) |
| Hole Size | 510*302mm(L*W) |
| Shell Material | Front panel aluminum alloy + metal middle cover + aluminum alloy rear cover |
| Installation Type | Embedded,Wall-Mounted,Desktop,VESA |
Optional Configuration
| CPU Optional | ||||
| Intel Celeron: J1800/J1900/J4125/J6412 | ||||
| Intel Core: I3/I5/I7-4th~11th Gen | ||||
| RAM Optional | ||||
| 4GB/8GB/16GB/32GB/64GB | ||||
| ROM Optional | ||||
| 64GB/128GB/256GB/512GB/1TB SSD |
ORDERING INFORMATION
Free accessories
| Accessory | Description |
| Embedded buckle | 4 pcs of embedded buckles+ 4 pcs of screws |
| Adapter | 1 pcs of 12V/5A adapter |
| Power cord | 1 pcs of 1.5m |
| HDMI cable | 1 pcs of 1.5m |
| Touch pen | 1 pcs |
Optional accessories
| Accessory | Description |
| Power cord | 1 pcs of 3m/5m |
| Wall-mount plate | 1 pcs of wall-mount plate |
| Desktop stand | 1 pcs of desktop stand |
