IC/ID card reader QR/Bar code scanner touch panel PC
Home - Products - Customized Industrial panel PC - IC/ID card reader QR/Bar code scanner touch panel PC - 15 Inches Embedded Mount Industrial touch Windows panel PC with customized modules ZPC150-L122

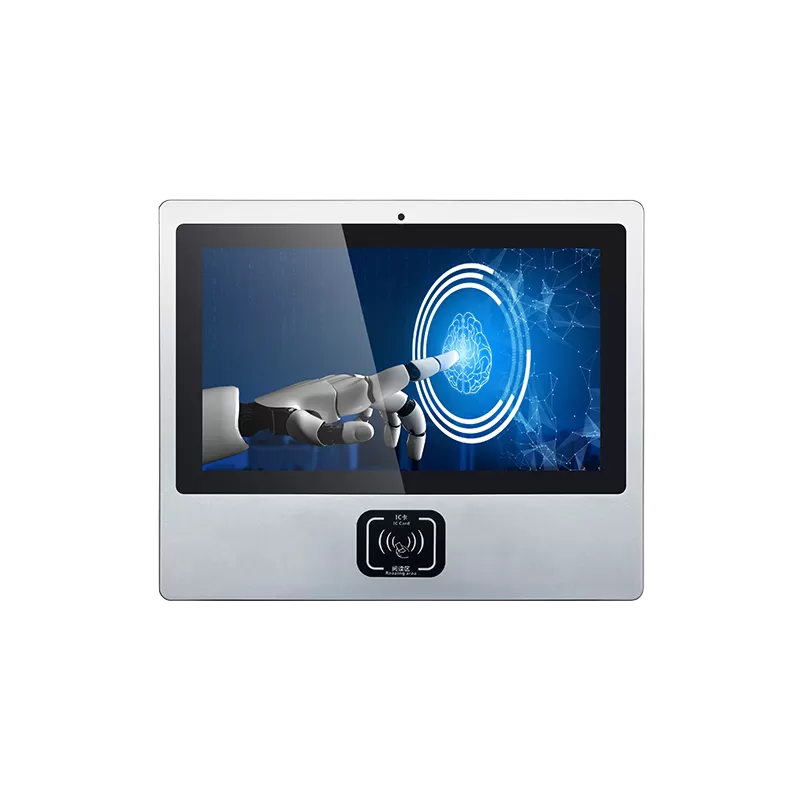

15 Inches Embedded Mount Industrial touch Windows panel PC with customized modules ZPC150-L122

Industrial grade front panel IP65 waterproof dust-proof 10-point touch capacitive touch 1024*768 resolution embedded Panel PC with customized module like IC/ID card reader, NFC, Rfid, QR code scanner, fingerprint scanner etc.

Advantages:


1. Industrial Grade Components and Fanless Designs

2. Frontal panel reach IP65 waterproof and dust-proof

3. Capacitive touch screen design (G+G), support 10-point touch

4. LED back light,  Brightness 300nit.(1000nit optional)

5. Aluminum Alloy material shell, sturdy and durable, anti-corrosion

6. Suitable for embedded mounting/ wall-mounting/ VESA mounting

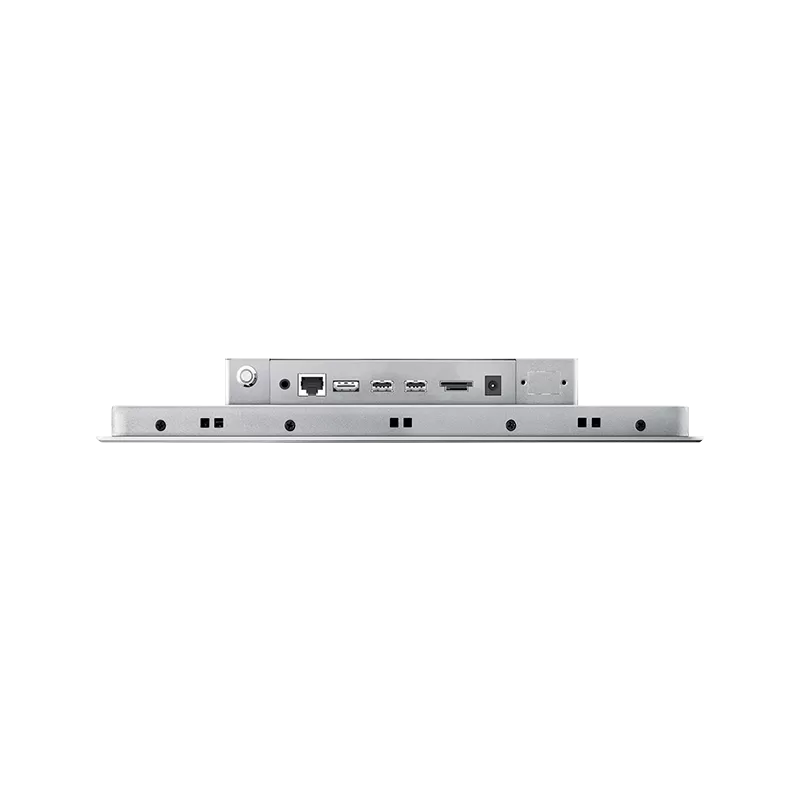

7. Multi-I/O connection: VGA,HDMI,USB,COM,LAN,AUDIO(support customized)

8. Suitable for various of application industry


Product Introduction PRODUCT SPECIFICATIONS ORDERING INFORMATION Data download

PRODUCT INTRODUCTION

Style L touch Panel PC is a model of industrial fanless embedded designed based on a capacitive touch screen Panel PC with customized modules.

It has tough characteristics such as dustproof, waterproof, and oil resistant.

The display screen is available in 13.3,15 and 15.6 inches.

15 Inches Embedded Mount Industrial touch Windows panel PC with customized modules ZPC150-L122

15 Inches Embedded Mount Industrial touch Windows panel PC with customized modules ZPC150-L122

PRODUCT SPECIFICATIONS

Basic Parameter

Sizes 15 inches
Resolution1024*768
Back lightLED
Brightness 300nits
Dynamic contrast1000:1
Touch screenCapacitive touch
Touch point   10-point touch
Respond Time  ≤5ms
Luminousness 85±5%
Surface Hardness 6H
Click Lifetime 50 millions times
Viewing AngleR/L:65(Typ.), U/D:65(Typ)
Communication InterfaceUSB interface
Operating System
Linux/Windows 7/8/10 32/64bit
ProcessorIntel Celeron J1900 (I3/I5/I7 optional)
RAM4GB DDR3 (8/16/32/64GB optional)
ROM64GB SSD (128GB/215GB/512GB/1TB optional)


I/O Interface

USB4*USB
Display out1*VGA, 1*HDMI
LAN        1*RJ45(Gigabit Ethernet)
COM
2*COM(RS232/RS485/RS422)
Audio 1*Line-out,1*Mic-in
Power12V DC power input


Environmental Parameters

Operating Temperature-10-+60
Storage Temperature        -20-+70
Relative Humidity20%-90%


General Parameters

Outline Dimension  367.8*358.9*53mm(L*W*H)
Display Dimension 304*228mm(L*W)
Hole Size 355.8*348.9mm(L*W)
Shell Material Front panel aluminum alloy + metal middle cover + aluminum alloy rear cover
Installation TypeEmbedded,Wall-Mounted,Desktop,VESA


Optional Configuration

CPU Optional
Intel Celeron: J1800/J1900/J4125/J6412
Intel Core: I3/I5/I7-4th~11th Gen
RAM Optional
4GB/8GB/16GB/32GB/64GB
ROM Optional
64GB/128GB/256GB/512GB/1TB SSD


ORDERING INFORMATION

Free accessories

AccessoryDescription
Embedded buckle           4 pcs of embedded buckles+ 4 pcs of screws
Adapter1 pcs of 12V/5A adapter
Power cord1 pcs of 1.5m
HDMI cable1 pcs of 1.5m
Touch pen1 pcs

Optional accessories

AccessoryDescription
Power cord                     1 pcs of 3m/5m
Wall-mount plate1 pcs of wall-mount plate
Desktop stand1 pcs of desktop stand



DATA DOWNLOAD
