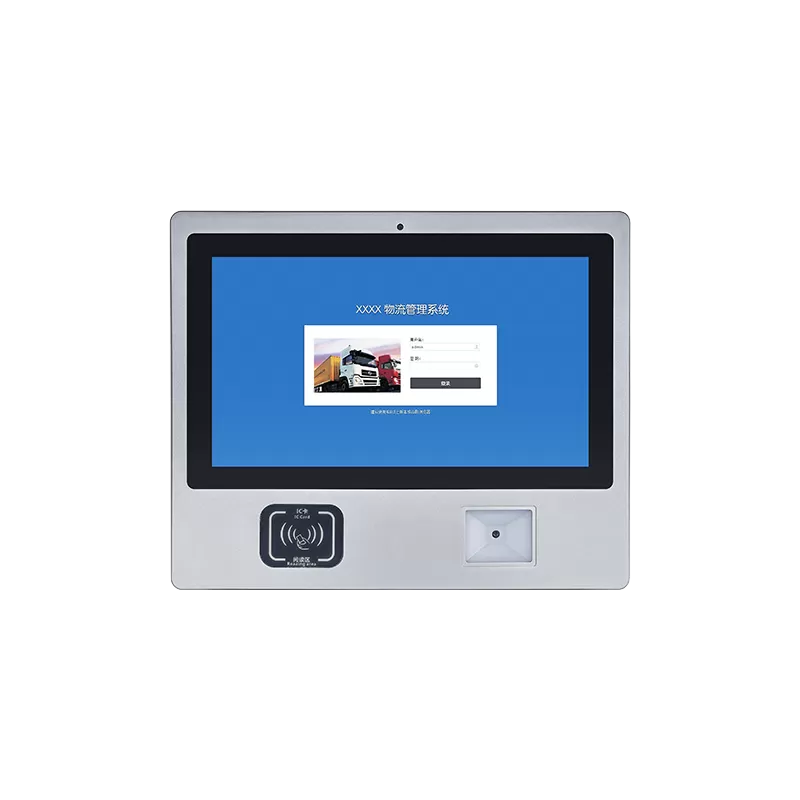

Industrial grade front panel pc IP65 waterproof dust-proof 10-point touch capacitive touch 1366*768(1920*1080) resolution embedded POS Panel PC with customized module like IC/ID card reader, NFC, Rfid, QR code scanner, fingerprint scanner etc.
Advantages
1. Industrial Grade Components and Fanless Designs
2. Frontal panel reach IP65 waterproof and dust-proof
3. Capacitive touch screen design (G+G), support 10-point touch
4. LED back light, Brightness 300nit.(1000nit optional)
5. Aluminum Alloy material shell, sturdy and durable, anti-corrosion
6. Suitable for embedded mounting/ wall-mounting/ VESA mounting
7. Multi-I/O connection: VGA,HDMI,USB,COM,LAN,AUDIO(support customized)
8. Suitable for various of application industry
PRODUCT INTRODUCTION
15.6 touch pc win11 i5 nfc barcode
Style L touch Panel PC is a model of industrial fanless embedded designed based on a capacitive touch screen Panel PC with customized modules. It has tough characteristics such as dustproof, waterproof, and oil resistant. The display screen is available in 13.3,15 and 15.6 inches.
* ZHICHUN is a professional manufacturer of industrial pc. ZHICHUN Panel computer are transforming conventional cash registers into state-of-the-art automated systems.
* With fast and safe windows system,these rugged and intuitive panel computer integrate seamlessly into point-of-sale terminals, offering unparalleled speed, efficiency, and reliability. *With high-resolution touchscreens, ZHICHUN Touch computer simplify transactions, inventory management, and data analytics for retailers. Their durability withstands constant public use while their versatile interface streamlines operations.
* Empowering both staff and customers, ZHICHUN Panel PCs guarantee a smoother, more secure payment process - enhancing the overall shopping journey.
Upgrade your checkout machine design; to envision the future of retail automation with ZHICHUN Panel PCs!
PRODUCT SPECIFICATIONS
Basic Parameter
| Sizes | 15.6 inches |
| Resolution | 1366*768/1920*1080 |
| Back light | LED |
| Brightness | 300nits |
| Dynamic contrast | 1000:1 |
| Touch screen | Capacitive touch |
| Touch point | 10-point touch |
| Respond Time | ≤5ms |
| Luminousness | 85±5% |
| Surface Hardness | 6H |
| Click Lifetime | 50 millions times |
| Viewing Angle | R/L:65(Typ.), U/D:65(Typ) |
| Communication Interface | USB interface |
| Operating System | Linux/Windows 7/8/10 32/64bit |
| Processor | Intel Celeron J1900 (I3/I5/I7 optional) |
| RAM | 4GB DDR3 (8/16/32/64GB optional) |
| ROM | 64GB SSD (128GB/215GB/512GB/1TB optional) |
I/O Interface
| USB | 4*USB |
| Display out | 1*VGA, 1*HDMI |
| LAN | 1*RJ45(Gigabit Ethernet) |
| COM | 2*COM(RS232/RS485/RS422) |
| Audio | 1*Line-out,1*Mic-in |
| Power | 12V DC power input |
Environmental Parameters
| Operating Temperature | -10－+60 ℃ |
| Storage Temperature | -20－+70 ℃ |
| Relative Humidity | 20%－90% |
General Parameters
| Outline Dimension | 405.5*331.8*54mm(L*W*H) |
| Display Dimension | 343.6*193mm(L*W) |
| Hole Size | 393.4*319.8mm(L*W) |
| Shell Material | Front panel aluminum alloy + metal middle cover + aluminum alloy rear cover |
| Installation Type | Embedded,Wall-Mounted,Desktop,VESA |
Optional Configuration
| CPU Optional | ||||
| Intel Celeron: J1800/J1900/J4125/J6412 | ||||
| Intel Core: I3/I5/I7-4th~11th Gen | ||||
| RAM Optional | ||||
| 4GB/8GB/16GB/32GB/64GB | ||||
| ROM Optional | ||||
| 64GB/128GB/256GB/512GB/1TB SSD |
ORDERING INFORMATION
Free accessories
| Accessory | Description |
| Embedded buckle | 4 pcs of embedded buckles+ 4 pcs of screws |
| Adapter | 1 pcs of 12V/5A adapter |
| Power cord | 1 pcs of 1.5m |
| HDMI cable | 1 pcs of 1.5m |
| Touch pen | 1 pcs |
Optional accessories
| Accessory | Description |
| Power cord | 1 pcs of 3m/5m |
| Wall-mount plate | 1 pcs of wall-mount plate |
| Desktop stand | 1 pcs of desktop stand |
