Multi-COM Port Mini PC
Home - Products - Industrial Fanless Mini PC - Multi-COM Port Mini PC - 6 COM 2 LAN 4USB industrial mini PC ZPC570-M26

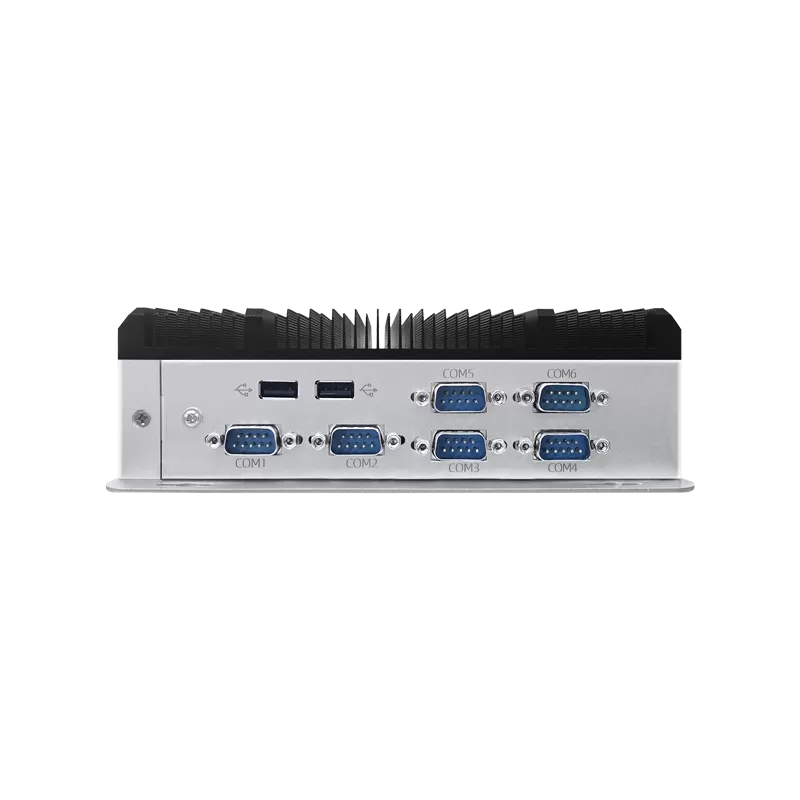

6 COM 2 LAN 4USB industrial mini PC ZPC570-M26

Powerful and Compact 6 COM(RS232/RS485/RS422) Intel Celeron J1800 and Intel core I3-11th Gen Dual/Quad-core processor Mini PC for industrial control computer


Advantages

1. Industrial Grade Components and Fanless Designs

2. Aluminum Alloy material shell, sturdy and durable, anti-corrosion

3. Multi- I/O connection: VGA, HDMI, USB, LAN, COM, DC port, Audio I/O (support customized)

4. Support multi-OS: Windows 10/ Linux

5. Power supply support 12V DC(9-36V optional), low consumption, TDP only 10W

6. Support Video display output: VGA , HDMI

7. Support extension: GPIO, 1*SATA, 1*mSATA, 1*Mini PCIE, support WIFI/4G module

8. Support WOL, PXE, 2* Realtek GBE LAN Chip (10/100/1000 Mbps)

9. Suitable for different harsh working envirment, operating temperature: -20°C to +60°C


Data download

Style M mini IPC with 2*GbE LAN, 6*COM(RS232+RS485), 4*USB, 1*VGA, 1*HDMI, 12V DC port, WIFI 2.4GHz interface. Completed and rich interfaces can Conveniently connect more industrial control testing, communications, instrumentation and equipment to meet the needs of more than 90% Industrial control interface requirements, and can be customized industrial computer pc according to customer needs.


Basic Parameter

Sizes 250*192*59.5mm
Net Weigh2.5KG
Operating System
Windows 10/ Linux
ProcessorIntegrated Intel®J1800/Max. 2.58GHz Duad-core , TDP 10W
RAM4GB, Support DDR3L 1333 MHz, 1 * SO-DIMM Slot, Up to 8GB
ROM64GB SSD, support 1*SATA+1*mSATA
GPU GraphicIntel® HD Graphics for Intel Atom® Processor Z3700 Series
WIFI2.4GHz WIFI
BT
BT4.0/BT5.2(optional)
ColorSliver+black
Material/StructurAluminum alloy fanless
Mounting typeDesktop type/ Embedded type
System ChipBase on Bay Trail, integrated CPU
BIOSAMI UEFI BIOS (Support Watchdog Timer)
Power
External Power Adapter or open power
Input VoltageDC 12V
Output Power60W and more


I/O Interface

POWER1 * Power switch, DC 12V Power Input, 1 * ATX 4P Power Input Right Angle Connector
LAN2 * Realtek GBE LAN Chip (10/100/1000 Mbps, RJ45),support WOL, PXE
USB1 * USB3.0, 3 * USB2.0
Display Interface1 * VGA+1 * HDMI(TYPE-A)
COM6 * COM (RS232/RS485)
WIFI2.4GHz WIFI
SATA3.01 * 2.5”HDD extend
mSATA1* MSATA SSD extend,transmission speed can reach 3Gbps
Mini PCIE1* Mini PCIE slot,support WIFI/4G module


Environmental Parameters

Operating Temperature0℃~60℃
Storage Temperature-20℃~75℃
Relative Humidity5%-95%, non-condensing
Operating vibration0.5g rms/5-500HZ/random/operating


Optional Configuration

CPU Optional

Intel Celeron: J1800

Intel Core: 3rd~11th Gen,I3/I5/I7

RAM Optional
4GB/8GB/16GB/32GB/64GB
ROM Optional64GB/128GB/256GB/512GB/1TB SSD

Free accessories

AccessoryDescription
Adapter1 pcs of 12V DC adapter
Power cord1 pcs of 1.5m

Optional accessories

AccessoryDescription
Power cord                     1 pcs of 3m/5m
Wall-mount plate1 pcs of wall-mount plate
Desktop stand1 pcs of desktop stand
