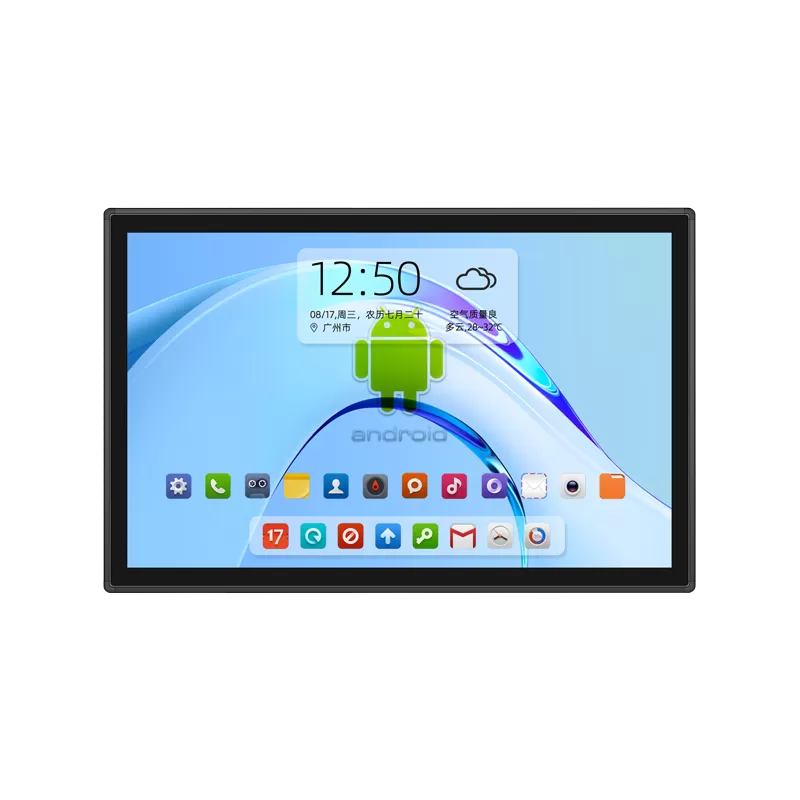

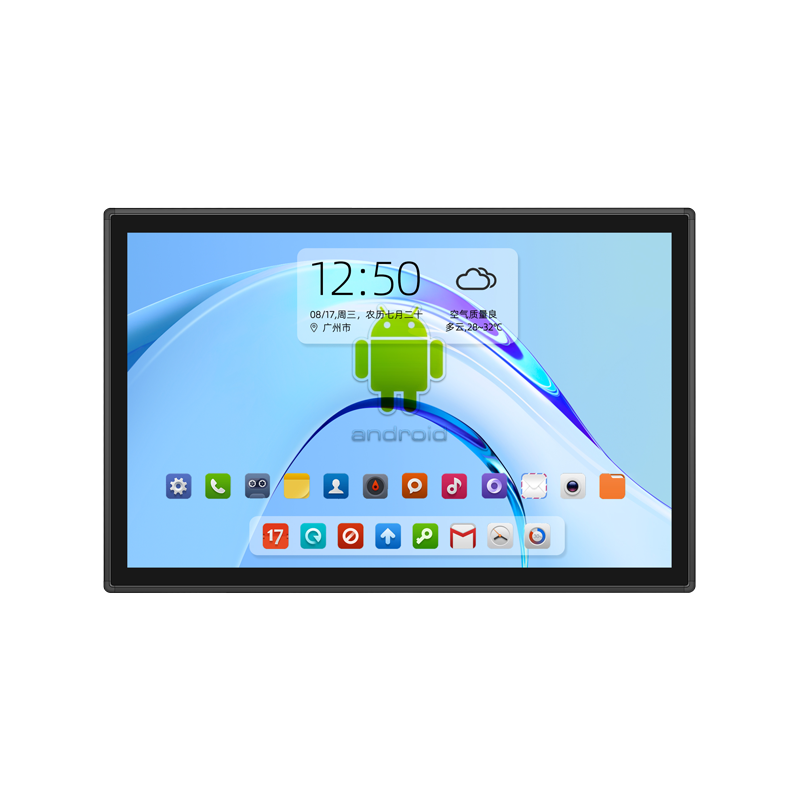

Industrial grade front panel IP65 waterproof dust-proof 10-point touch capacitive touch 1920*1080 resolution embedded Panel PC.
Advantages
1. Industrial Grade Components and Fanless Designs
2. Frontal panel reach IP65 waterproof and dust-proof
3. Capacitive touch screen design (G+G), support 10-point touch
4. LED back light, brightness 300nit (1000nit option)
5. Plastic middle shell + aluminum rear shell , light and fashion. sturdy and durable
6. Suitable for build-in mounting/ wall-mounting/ VESA mounting
7. Multi-I/O connection: HDMI,USB, LAN, SIM slot, TF card slot, DC port, Audio (support customized)
8. Suitable for various of application industry
PRODUCT INTRODUCTION
Style S touch Panel PC is a model of industrial fanless open frame designed based on a capacitive touch screen Panel PC. It has tough characteristics such as dustproof, waterproof, and oil resistant. The display screen is available in 7, 10.1, 11.6, 13.3, 14, 15, 15.6, 17, 17.3, 18.5, 19, 21.5, 23.6, 27 and 32 inches.
PRODUCT SPECIFICATIONS
Basic Parameter
| Sizes | 32 inches |
| Resolution | 1920*1080 |
| Back light | LED |
| Brightness | 300nits |
| Dynamic contrast | 1000:1 |
| Touch screen | Capacitive touch |
| Touch point | 10-point touch |
| Respond Time | ≤5ms |
| Luminousness | 85±5% |
| Surface Hardness | 6H |
| Click Lifetime | 50 millions times |
| Viewing Angle | R/L:65(Typ.), U/D:65(Typ) |
| Communication Interface | USB interface |
| Operating System | Android 7.1/8.1/9/11/12 |
| Processor | RK3288 (RK3399/RK3568/A311D optional) |
| RAM | 2GB (4GB/8GB optional) |
| ROM | 8GB eMMC (16GB/32GB/64GB optional) |
I/O Interface
| USB | 2*USB |
| Display out | 1*HDMI |
| LAN | 1*RJ45(Gigabit Ethernet) |
| 4G LTE | 1*SIM slot(4G module optional) |
| Extended storage | 1*TF card slot |
| Audio | 1*Line-out |
| Power | 100-240V AC power input |
Environmental Parameters
| Operating Temperature | -10－+60 |
| Storage Temperature | -20－+70 |
| Relative Humidity | 20%－90% |
General Parameters
| Outline Dimension | 770.7*465.6*57.2mm(L*W*H) |
| Display Dimension | 702.6*396.6mm(L*W) |
| Hole Size | 765.3*460.2mm(L*W) |
| Shell Material | Plastic+Metal plate |
| Installation Type | Embedded,Wall-Mounted,Desktop,VESA |
Optional Configuration
| Motherboard Optional | RK3288 | RK3399 | A311D | RK3568 | ||||
| Version Optional | Android 7.1 | Android 8.1/9/11 | Android 9 | Android 11/12 | ||||
| RAM Optional | 2GB/4GB | 2GB/4GB | 4GB/8GB | |||||
| ROM Optional(eMMC) | 8GB/16GB/32GB | 16GB/32GB/64GB | 16GB/32GB/64GB | |||||
ORDERING INFORMATION
Free accessories
| Accessory | Description |
| Embedded buckle | 4 pcs of embedded buckles+ 4 pcs of screws |
| Power cord | 1 pcs of 1.5m |
| HDMI cable | 1 pcs of 1.5m |
| Touch pen | 1 pcs |
Optional accessories
| Accessory | Description |
| Power cord | 1 pcs of 3m/5m |
| Wall-mount plate | 1 pcs of wall-mount plate |
| Desktop stand | 1 pcs of desktop stand |
