Industrial grade front panel IP65 waterproof dust-proof 10-point touch capacitive touch 1920*1080 resolution embedded monitor.
Advantages
1. Industrial Grade Components and Fanless Designs
2. Frontal panel reach IP65 waterproof and dust-proof
3. Capacitive touch screen design (G+G), support 10-point touch
4. LED back light, brightness 300nit
5. Plastic middle shell + aluminum rear shell , light and fashion. sturdy and durable
6. Suitable for build-in mounting/ wall-mounting/ VESA mounting
7. Multi-type display input connection: VGA. HDMI, DVI
8. Suitable for various of application industry
PRODUCT INTRODUCTION
Style S touch monitor is a model of industrial fanless open frame designed based on a capacitive touch screen monitor. It has tough characteristics such as dustproof, waterproof, and oil resistant. The display screen is available in 7, 10.1, 11.6, 13.3, 14, 15, 15.6, 17, 17.3, 18.5, 19, 21.5, 23.6, 27 and 32 inches.
PRODUCT SPECIFICATIONS
Basic Parameter
| Sizes | 27 inches |
| Resolution | 1920*1080 |
| Back light | LED |
| Brightness | 300nits |
| Dynamic contrast | 1000:1 |
| Touch screen | Capacitive touch |
| Touch point | 10-point touch |
| Respond Time | ≤5ms |
| Luminousness | 85±5% |
| Surface Hardness | 6H |
| Click Lifetime | 50 millions times |
| Viewing Angle | R/L:65(Typ.), U/D:65(Typ) |
| Communication Interface | USB interface |

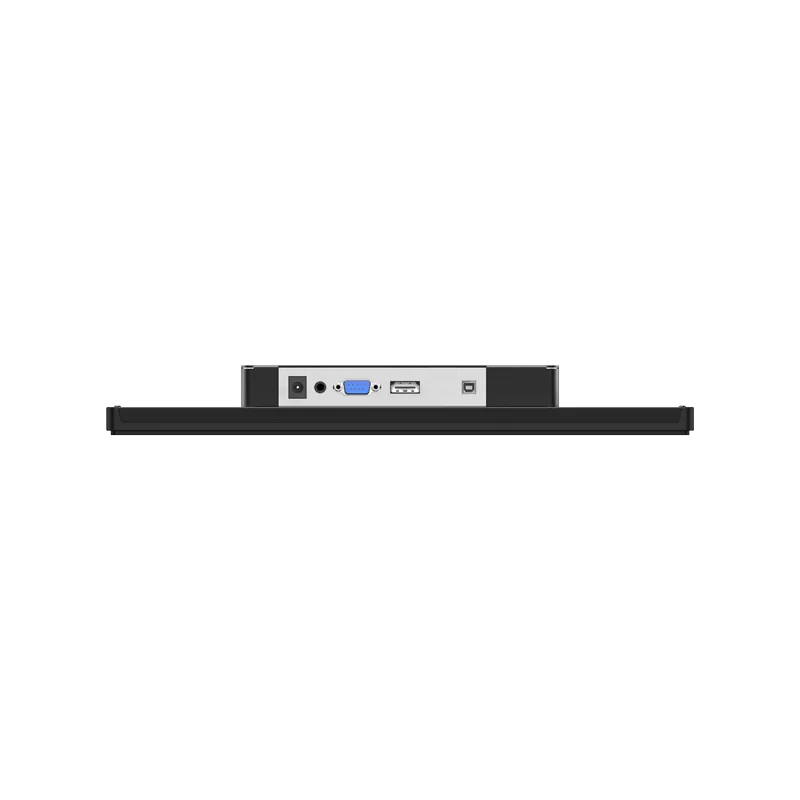

I/O Interface
| USB | 1*USB type-B |
| HDMI | 1*HDMI |
| VGA | 1*VGA |
| Audio | 1*Line-out |
| Power | 12V DC power input |
Environmental Parameters
| Operating Temperature | -10－+60 |
| Storage Temperature | -20－+70 |
| Relative Humidity | 20%－90% |
General Parameters
| Outline Dimension | 657*398*50.1mm(L*W*H) |
| Display Dimension | 598*336mm(L*W) |
| Hole Size | 651.6*392.6mm(L*W) |
| Shell Material | Plastic+Metal plate |
| Installation Type | Embedded,Wall-Mounted,Desktop,VESA |
ORDERING INFORMATION
Free accessories
| Accessory | Description |
| Embedded buckle | 4 pcs of embedded buckles+ 4 pcs of screws |
| Adapter | 1 pcs of 12V/5A adapter |
| Power cord | 1 pcs of 1.5m |
| VGA cable | 1 pcs of 1.5m |
| HDMI cable | 1 pcs of 1.5m |
| USB-B cable | 1 pcs of 1.5m |
| Touch pen | 1 pcs |
Optional accessories
| Accessory | Description |
| Power cord | 1 pcs of 3m/5m |
| Wall-mount plate | 1 pcs of wall-mount plate |
| Desktop stand | 1 pcs of desktop stand |
