Industrial grade Panel Mount embedded Touch PC
Advantages
• Type: Industrial Embedded Computer
• Display: Touchscreen Monitor
• Operating System: Windows/Linux/Android
• Connectivity: Multiple ports (USB, Ethernet, etc.)
• Durability: Industrial-grade build
• Dimensions: 15.6 inch
• RAM:8/16/32 GB
• Storage: SSD 64/128/256/512
• Temperature Range: Suitable for industrial environments
(Please specify exact range if available)
Service :
• 1 warranty
• Installation service request.
• Technical support and maintenance availability.
PRODUCT INTRODUCTION
Style Z touch Panel PC is a model of industrial fanless embedded designed based on a capacitive touch screen Panel PC.
A good panel mount pc and monitor.
It has tough characteristics such as dustproof, waterproof, and oil resistant.
The display screen is available in 7, 8, 10.1, 10.4, 12.1, 15, 15.6, 17, 19 and 21.5 inches.
Also can custom color and size according to your requirements.
Lead time 7-15 days
The picture is black edge panel pc.
and you notice that there is a camera.
Yes, we can custom camera to scaning data/Face recognition/video call
Can add card reader and other, welcome to contatc us to tell your requirements,
Our ipc main features :
Processor optional: J6412/I3/I5/I7，5th and 10th GEN
OS: win7/win10/android/linux OS
RAM: 4GB/8GB/16GB
ROM: 128GB/256GB/512GB/1TB
Port : 1*RJ45,2*COM,4*USB,1*HDMI,1*VGA port
Touch: Capacitive touch/resistive touch
Cooling system: fan and fanless optional
Support : OEM and ODM, support booting logo
Power : 9-36V optional
Warranty:12month
Material is aluminum alloy, which can use for a long time without broken.
Good heat dissipation
Low-power consumption less than 65W

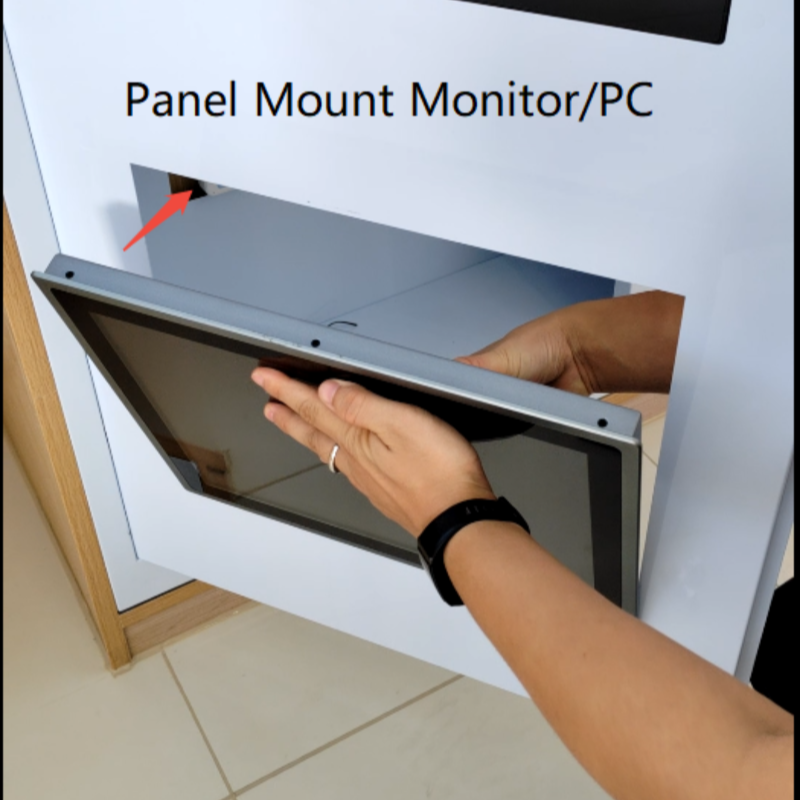

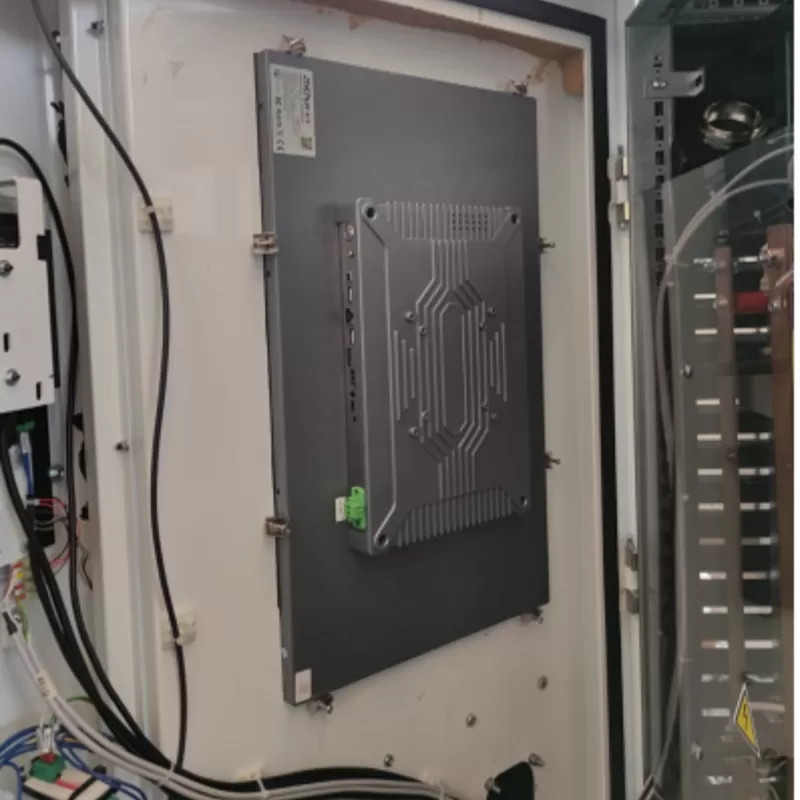

Panel mount embedded install way.
Check this link on our site or contact our sales team.
PRODUCT SPECIFICATIONS
Basic Parameter
| Sizes | 15.6 inches |
| Resolution | 1920*1080 |
| Back light | LED |
| Brightness | 300nits |
| Dynamic contrast | 1000:1 |
| Touch screen | Capacitive touch |
| Touch point | 10-point touch |
| Respond Time | ≤5ms |
| Luminousness | 85±5% |
| Surface Hardness | 6H |
| Click Lifetime | 50 millions times |
| Viewing Angle | R/L:65(Typ.), U/D:65(Typ) |
| Communication Interface | USB interface |
| Operating System | Linux/Windows 7/8/10 32/64bit |
| Processor | Intel Celeron J1900 (I3/I5/I7 optional) |
| RAM | 4GB DDR3 (8/16/32/64GB optional) |
| ROM | 64GB SSD (128GB/215GB/512GB/1TB optional) |
I/O Interface
| USB | 4*USB |
| Display out | 1*VGA, 1*HDMI |
| LAN | 1*RJ45(Gigabit Ethernet) |
| COM | 2*COM(RS232/RS485/RS422) |
| Audio | 1*Line-out,1*Mic-in |
| Power | 12V DC power input |
Environmental Parameters
| Operating Temperature | -10－+60 |
| Storage Temperature | -20－+70 |
| Relative Humidity | 20%－90% |
General Parameters
| Outline Dimension | 401.54*250.83*49mm(L*W*H) |
| Display Dimension | 343.54*192.83mm(L*W) |
| Hole Size | 389.54*238.83mm(L*W) |
| Shell Material | Front panel aluminum alloy + metal middle cover + aluminum alloy rear cover |
| Installation Type | Embedded,Wall-Mounted,Desktop,VESA |
Optional Configuration
| CPU Optional | ||||
| Intel Celeron: J1800/J1900/J4125/J6412 | ||||
| Intel Core: I3/I5/I7-4th~11th Gen | ||||
| RAM Optional | ||||
| 4GB/8GB/16GB/32GB/64GB | ||||
| ROM Optional | ||||
| 64GB/128GB/256GB/512GB/1TB SSD |
ORDERING INFORMATION
Free accessories
| Accessory | Description |
| Embedded buckle | 4 pcs of embedded buckles+ 4 pcs of screws |
| Adapter | 1 pcs of 12V/5A adapter |
| Power cord | 1 pcs of 1.5m |
| HDMI cable | 1 pcs of 1.5m |
| Touch pen | 1 pcs |
Optional accessories
| Accessory | Description |
| Power cord | 1 pcs of 3m/5m |
| Wall-mount plate | 1 pcs of wall-mount plate |
| Desktop stand | 1 pcs of desktop stand |
