Unique Custom ODM
Home - Products - Customized Industrial panel PC - Unique Custom ODM - Open Frame 15 Inch Touch Screen Panel PC

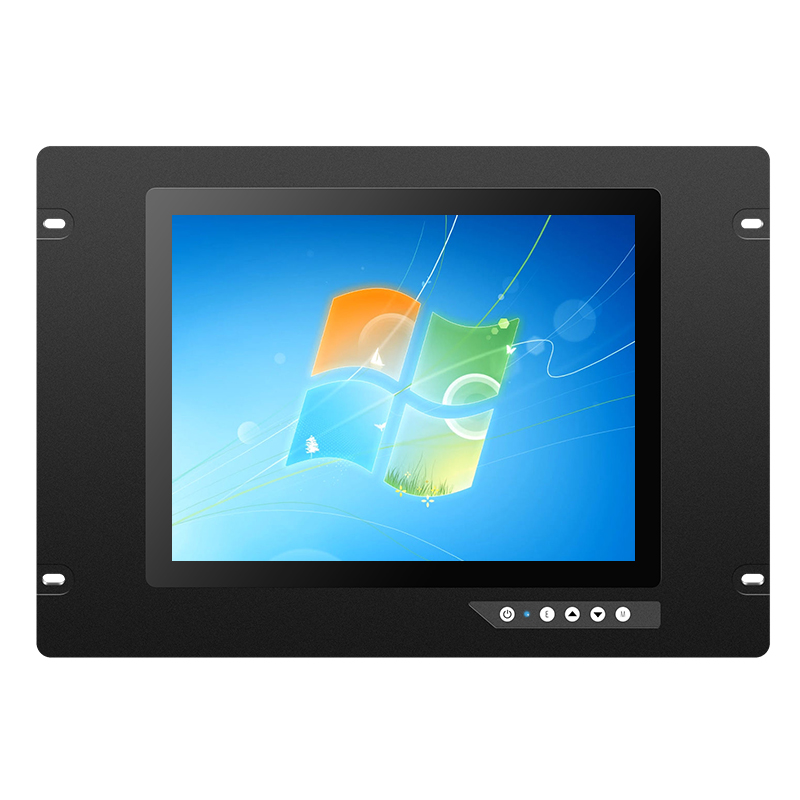

Open Frame 15 Inch Touch Screen Panel PC

Brand: no, you can add your brand

Supplier manufacturer:Zhichun



CPU: Intel J1900, RAM 8G, SSD 512G.

More options requirements please contact us.


Features:

1.Borderless design: making them easy to integrate into larger systems or structures.

2.Industrial-grade durability: rugged materials and have good dust and water resistance.

3.Wide operating temperature range:  -20°C to +60°C

4.Touch screen support: capacitive/multi-touch screens,

5.High-performance computing power:

6.Rich I/O interfaces and can be customized

7.Support: Windows 7/10/11 , Linux, Android,etc.

8.Low power consumption: 35W

Product Introduction PRODUCT SPECIFICATIONS ORDERING INFORMATION

PRODUCT INTRODUCTION

An Open Frame Panel PC is an industrial-grade computer designed as a display and computing unit combination without a housing or frame.

This type of PC is often used in embedded applications, kiosks, automation systems, digital signage, and other scenarios where computing power needs to be integrated directly into a larger device or structure.


Features of an Open Frame Panel PC include:

1. Borderless design: Since there is no housing, it can be easily installed into a custom cabinet or wall.

2. Touch screen function: Many models support touch operation for easy user interaction.

3. Durability: In order to adapt to various environmental conditions, this type of PC often has a high degree of protection and can resist dust, moisture and other contaminants.

4. Optional performance: Depending on specific needs, different configurations of processors, memory and storage space can be selected.

5. Rich interfaces: Provides a variety of I/O interfaces to meet different connection needs, such as USB ports, serial ports, VGA/DVI/HDMI display outputs, etc.

6. Operating system compatibility: Generally supports multiple operating systems such as Windows and Linux.


If you are looking for a specific model of open frame panel PC or want to know how to choose the right product for your project, please provide more information about your application scenario and specific requirements for the hardware so that I can give more specific suggestions.


15.6 Inch Industrial Panel PC 4 LAN Port


15.6 Inch Industrial Panel PC 4 LAN Port


I try my hard to let you know that we are the industrial computer manufacturer.

But the most important is that we want to help you in your projects and business.

We a factory specializing in the production of industrial computers and industrial displays.

There is no need to regret choosing us Zhichun.

 We provide sturdy and durable industrial control computers for many industrial control machinery in the Chinese market,

 allowing them to export to all parts of the world with confidence. Waterproof, dustproof, cold-resistant and heat-resistant, with stable performance, it is absolutely worthy of your trust.


Industrial Touch Computer


PRODUCT SPECIFICATIONS

Basic Parameter

Sizes 15.6 inches
Resolution1366*768/1920*1080
Back lightLED
Brightness 300nits
Dynamic contrast1000:1
Touch screenCapacitive touch
Touch point   10-point touch
Respond Time  ≤5ms
Luminousness 85±5%
Surface Hardness 6H
Click Lifetime 50 millions times
Viewing AngleR/L:65(Typ.), U/D:65(Typ)
Communication InterfaceUSB interface
Operating System
Linux/Windows 7/8/10 32/64bit
ProcessorIntel Celeron J1900 (I3/I5/I7 optional)
RAM4GB DDR3 (8/16/32/64GB optional)
ROM64GB SSD (128GB/215GB/512GB/1TB optional)


I/O Interface

USB4*USB
Display out1*VGA, 1*HDMI
LAN        1*RJ45(Gigabit Ethernet)
COM
6*COM(RS232/RS485/RS422)
Audio 1*Line-out,1*Mic-in
Power12V DC power input


Environmental Parameters

Operating Temperature-10-+60
Storage Temperature        -20-+70
Relative Humidity20%-90%


Optional Configuration

CPU Optional
Intel Celeron: J1800/J1900/J4125/J6412
Intel Core: I3/I5/I7-4th~11th Gen
RAM Optional
4GB/8GB/16GB/32GB/64GB
ROM Optional
64GB/128GB/256GB/512GB/1TB SSD


ORDERING INFORMATION

Free accessories

AccessoryDescription
Embedded buckle           4 pcs of embedded buckles+ 4 pcs of screws
Adapter1 pcs of 12V/5A adapter
Power cord1 pcs of 1.5m
HDMI cable1 pcs of 1.5m
Touch pen1 pcs

Optional accessories

AccessoryDescription
Power cord                     1 pcs of 3m/5m
Wall-mount plate1 pcs of wall-mount plate
Desktop stand1 pcs of desktop stand
