I5 12gen/8gb/256gb optional capacitive touch 1920*1080 resolution wall-mount Panel PC.
Advantages
1. Industrial Grade Components and Fanless Designs
2. Frontal panel reach IP65 waterproof and dust-proof
3. Capacitive touch screen design (G+G), support 10-point touch
4. LED back light, Brightness 300 nits, available to upgrade to 1000 nits
5. Metal shell, sturdy and durable
6. Suitable for wall-mounting/ VESA mounting
7. Multi-I/O connection: HDMI,USB, LAN, SIM slot, TF card slot, DC port, Audio (support customized)
8. Suitable for various of application industry
PRODUCT INTRODUCTION

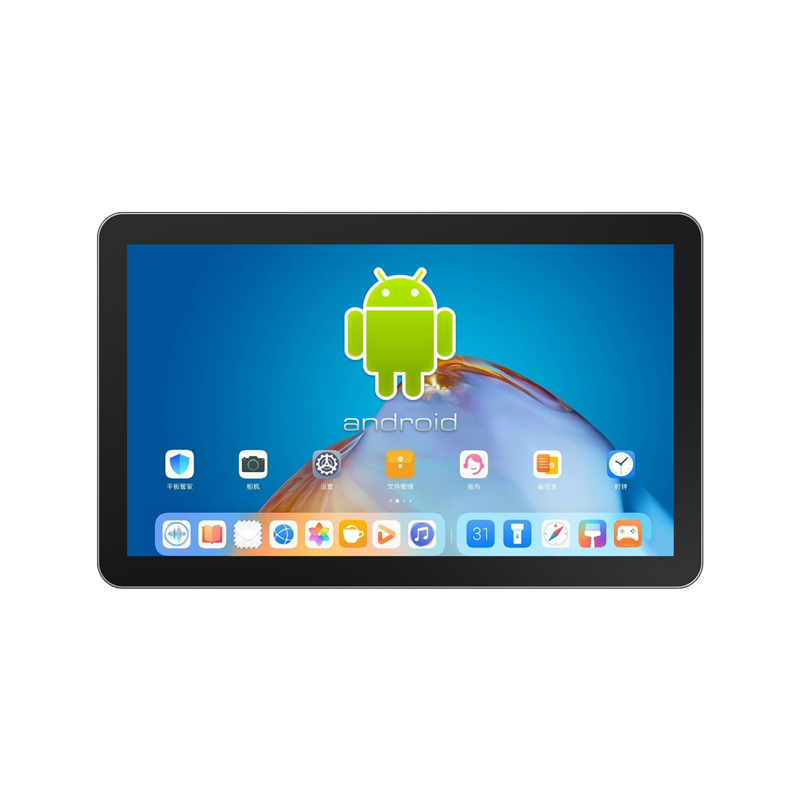

Style H touch Panel PC is a model of industrial fanless wall-mount designed based on a capacitive touch screen Panel PC.
It has tough characteristics such as dustproof, waterproof, and oil resistant.
The display screen is available in 15.6, 18.5, 21.5, 23.6, 27, 32, 43, 50, 55 and 65 inches.
Win 10 pro SSD256 DDR4 8 all in one pc i7 16 graphic all in one pc modern
8gb 16gb 32gb Ram 512 gb ssd
core I7 Processor All In One pc Computer
24"27''Inch All In One Pc For Supermarket
Desktop All In One Pc.
Product specifications:
·Size: 24inch/27 inch
·Products Status: New
·Panel Type: IPS
·Warranty(Year): 1-Year
·Contrast Ratio: 1000:1
PRODUCT SPECIFICATIONS
Basic Parameter
| Sizes | 18.5 inches |
| Resolution | 1366*768(1920*1080) |
| Back light | LED |
| Brightness | 300nits |
| Dynamic contrast | 1000:1 |
| Touch screen | Capacitive touch |
| Touch point | 10-point touch |
| Respond Time | ≤5ms |
| Luminousness | 85±5% |
| Surface Hardness | 6H |
| Click Lifetime | 50 millions times |
| Viewing Angle | R/L:65(Typ.), U/D:65(Typ) |
| Communication Interface | USB interface |
| Operating System | Android 7.1/8.1/9/11/12 |
| Processor | RK3288 (RK3399/RK3568/A311D optional) |
| RAM | 2GB (4GB/8GB optional) |
| ROM | 8GB eMMC (16GB/32GB/64GB optional) |
I/O Interface
| USB | 2*USB |
| Display out | 1*HDMI |
| LAN | 1*RJ45(Gigabit Ethernet) |
| 4G LTE | 1*SIM slot(4G module optional) |
| Extended storage | 1*TF card slot |
| Audio | 1*Line-out |
| Power | 12V DC power input |
Environmental Parameters
| Operating Temperature | -10－+60 |
| Storage Temperature | -20－+70 |
| Relative Humidity | 20%－90% |
General Parameters
| Outline Dimension | 462.2*287.2*44mm(L*W*H) |
| Display Dimension | 411*232mm(L*W) |
| Mounting Hole Size | 100*100mm |
| Shell Material | Metal cover |
| Installation Type | Wall-Mounted, Desktop, VESA |
Optional Configuration
| Motherboard Optional | RK3288 | RK3399 | A311D | RK3568 | ||||
| Version Optional | Android 7.1 | Android 8.1/9/11 | Android 9 | Android 11/12 | ||||
| RAM Optional | 2GB/4GB | 2GB/4GB | 4GB/8GB | |||||
| ROM Optional(eMMC) | 8GB/16GB/32GB | 16GB/32GB/64GB | 16GB/32GB/64GB | |||||
ORDERING INFORMATION
Free accessories
| Accessory | Description |
| Embedded buckle | 4 pcs of embedded buckles+ 4 pcs of screws |
| Adapter | 1 pcs of 12V/5A adapter |
| Power cord | 1 pcs of 1.5m |
| HDMI cable | 1 pcs of 1.5m |
| Touch pen | 1 pcs |
Optional accessories
| Accessory | Description |
| Power cord | 1 pcs of 3m/5m |
| Wall-mount plate | 1 pcs of wall-mount plate |
| Desktop stand | 1 pcs of desktop stand |
