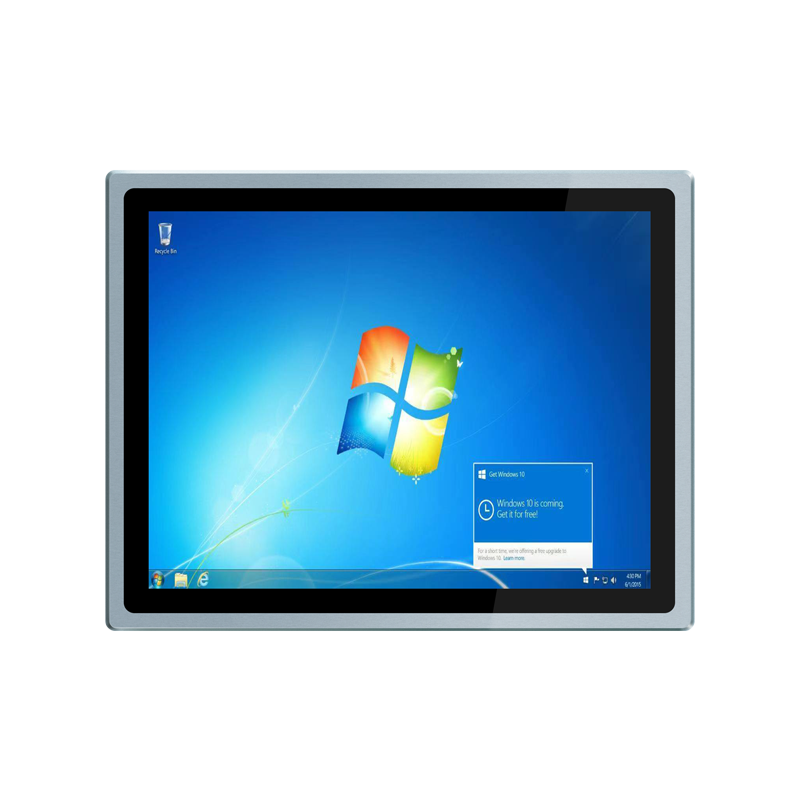

5 Wire Resistive Touch Screen ZPC121-Z222

Touch Technology

Resistive Touch Screen:

Four Wires for Coordinates: Four wires are used to measure the X and Y coordinates of the touch.

One Wire for Grounding: The fifth wire is used to ground the touch layer, which helps improve the accuracy and durability of the touch screen.

Operation Principle: A resistive touch screen consists of two flexible sheets coated with a resistive material and separated by a small gap. When the screen is touched, the top sheet presses down and makes contact with the bottom sheet, creating a change in the electrical current that is detected and interpreted as a touch event.

5-Wire Configuration:

Key Features

Durability: 5-wire resistive touch screens are known for their durability and can withstand repeated use and harsh environments.

Accuracy: They offer good touch accuracy, making them suitable for applications that require precise input.

Single-Touch Input: Most 5-wire resistive touch screens support single-touch input, although some advanced models may offer limited multi-touch capabilities.

Environmental Resistance: These monitors are often designed to be resistant to dust, water, and other environmental factors, making them ideal for industrial and outdoor use.

Applications

Industrial Control Panels: Used in manufacturing and automation systems where robust and reliable input is crucial.

Point-of-Sale (POS) Systems: Common in retail environments for order entry and payment processing.

Kiosks and Information Terminals: Found in public places like malls, airports, and libraries for information lookup and self-service.

Educational Settings: Used in classrooms and training centers for interactive learning.

Technical Specifications

Resolution: Common resolutions for 12-inch monitors include:

1024x768 (XGA)

1280x800 (WXGA)

Brightness: Typically ranges from 250 to 400 nits, depending on the intended environment. can custom 1000nits high brightness.

Viewing Angles: Good viewing angles ensure that the display is visible from multiple positions.

Connectivity: Common interfaces include:

VGA

DVI

HDMI

USB (for both video and touch data)

Maintenance and Care

Cleaning: Use a soft, lint-free cloth to clean the screen. Avoid using abrasive materials or harsh chemicals.

Calibration: Periodic calibration may be necessary to maintain touch accuracy.

Firmware Updates: Some monitors may require firmware updates to ensure optimal performance and compatibility with new software.

Additional Considerations

Mounting Options: Many 12-inch touch display come with VESA mounting options for wall or stand mounting.

Power Consumption: Low power consumption (less than 35W)  is important for energy efficiency, especially in battery-powered or portable applications.

Temperature Range: Ensure the monitor can operate within the required temperature range for your specific application.

If you have any specific questions or need further details, feel free to ask!

Usage Scenarios:

Dashcam Monitoring: In vehicles, to view footage from dashcams or backup cameras.

Point-of-Sale (POS) Systems: For retail environments where a compact and efficient display is needed.

Raspberry Pi Projects: As a display for DIY computing projects.

Gaming: For portable gaming setups or as a secondary screen.

Educational Tools: In classrooms or for personal learning, where a smaller, more focused screen is beneficial.

When choosing a 12-inch LCD HDMI monitor, consider your specific requirements and read reviews to ensure the product meets your expectations in terms of performance and reliability.
