Its a panel mount monitor pc, widely use to embedded on machine or cabinet. Also can custom high brightness for outdoor.
Can make RS484/232, LAN port, according to your needs.
Just contact us to tell your requirements.
Advantages
1. Industrial Grade Components and Fanless Designs
2. Frontal panel reach IP65 waterproof and dust-proof
3. Capacitive touch screen design (G+G), support 10-point touch
4. LED back light, Brightness 300nit
5. Aluminum Alloy material shell, sturdy and durable, anti-corrosion
6. Suitable for embedded mounting/ wall-mounting/ VESA mounting
7. Multi-I/O connection: VGA,HDMI,USB,COM,LAN,AUDIO(support customized)
8. Suitable for various of application industry
PRODUCT INTRODUCTION

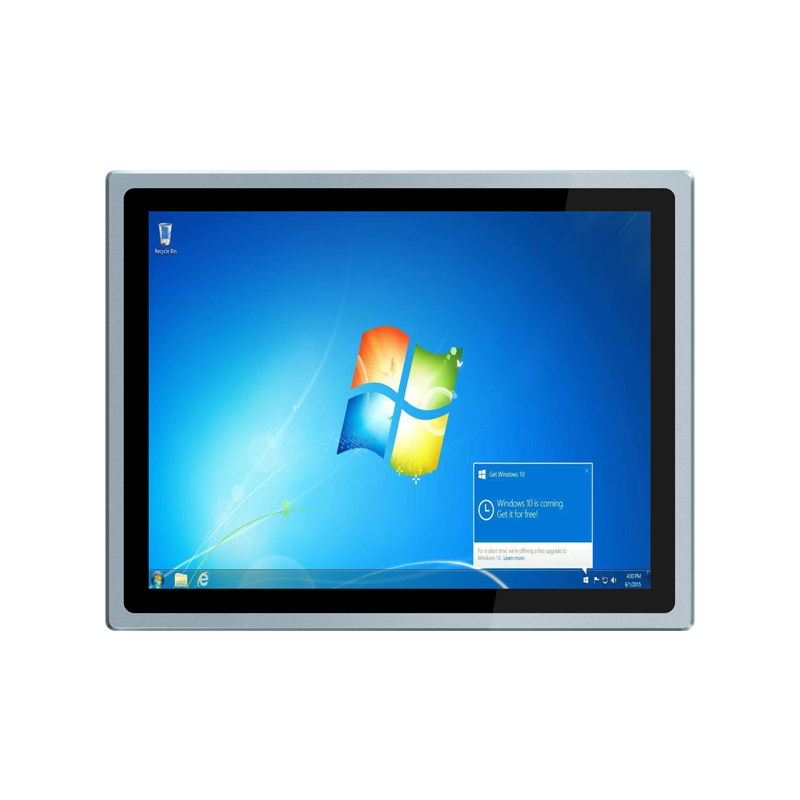

8 inch touch screen monitor industrial monitor embedded /open frame lcd monitor
Can add android 11/13/linux, window 10 system as tablet,computer
It has tough characteristics such as dustproof, waterproof, and oil resistant.
The display screen is available in 7, 8, 10.1, 10.4, 12.1, 15, 15.6, 17, 19 and 21.5 inches.
A review from buyer: I just finished setting up and testing the panel, I really like it! I was a little surprised there was no foam water/dust seal on the back of the panel where it mounts in the panel, but I can buy some adhesive weather stripping to apply around the perimeter for that function. I do have a question, and that is to know how to make the unit automatically power up when power is supplied to the unit, without a person to press the button. Other systems I have used had a jumper or BIOS setting to accomplish this. For my automated machinery, it is necessary so if the utility power goes off, when it comes back on the system will reboot itself and my software will continue as it was. Otherwise I am happy with the unit, and will purchase additional units when I need them.
If you need it start on automatically, we can set for you. We use industrial motherboard, which custom for the industry automation to use.
Choose Zhichun, let us help your business grow up.
PRODUCT SPECIFICATIONS
Basic Parameter
| Sizes | 8 inches |
| Resolution | 1024*726 |
| Back light | LED |
| Brightness | 300nits |
| Dynamic contrast | 1000:1 |
| Touch screen | Capacitive touch |
| Touch point | 10-point touch |
| Respond Time | ≤5ms |
| Luminousness | 85±5% |
| Surface Hardness | 6H |
| Click Lifetime | 50 millions times |
| Viewing Angle | R/L:65(Typ.), U/D:65(Typ) |
| Communication Interface | USB interface |
| Operating System | Linux/Windows 7/8/10 32/64bit |
| Processor | Intel Celeron J1900 (I3/I5/I7 optional) |
| RAM | 4GB DDR3 (8/16/32/64GB optional) |
| ROM | 64GB SSD (128GB/215GB/512GB/1TB optional) |

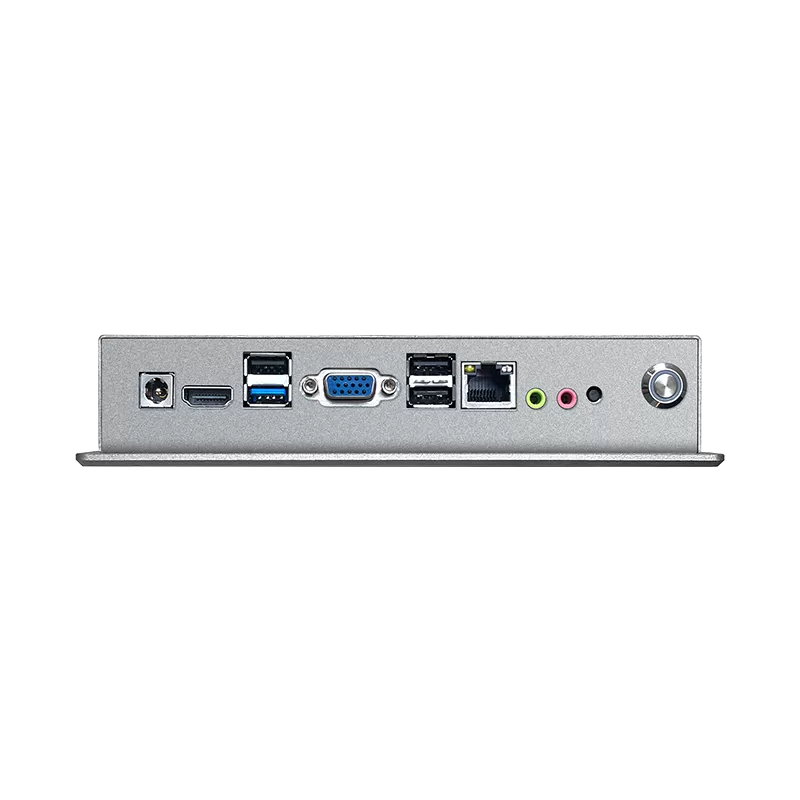

I/O Interface
| USB | 4*USB |
| Display out | 1*VGA, 1*HDMI |
| LAN | 1*RJ45(Gigabit Ethernet) |
| COM | 2*COM(RS232/RS485/RS422) |
| Audio | 1*Line-out,1*Mic-in |
| Power | 12V DC power input |
Environmental Parameters
| Operating Temperature | -10－+60 |
| Storage Temperature | -20－+70 |
| Relative Humidity | 20%－90% |
General Parameters
| Outline Dimension | 219.2*176.7*40mm(L*W*H) |
| Display Dimension | 165.2*122.7mm(L*W) |
| Hole Size | 207.2*165.7mm(L*W) |
| Shell Material | Front panel aluminum alloy + metal middle cover + aluminum alloy rear cover |
| Installation Type | Embedded,Wall-Mounted,Desktop,VESA |
Optional Configuration
| CPU Optional | ||||
| Intel Celeron： J1800/J1900/J4125/J6412 | ||||
| Intel Core：I3/I5/I7-4th~11th Gen | ||||
| RAM Optional | ||||
| 4GB/8GB/16GB/32GB/64GB | ||||
| ROM Optional | ||||
| 64GB/128GB/256GB/512GB/1TB SSD |
ORDERING INFORMATION
Free accessories
| Accessory | Description |
| Embedded buckle | 4 pcs of embedded buckles+ 4 pcs of screws |
| Adapter | 1 pcs of 12V/5A adapter |
| Power cord | 1 pcs of 1.5m |
| HDMI cable | 1 pcs of 1.5m |
| Touch pen | 1 pcs |
Optional accessories
| Accessory | Description |
| Power cord | 1 pcs of 3m/5m |
| Wall-mount plate | 1 pcs of wall-mount plate |
| Desktop stand | 1 pcs of desktop stand |
