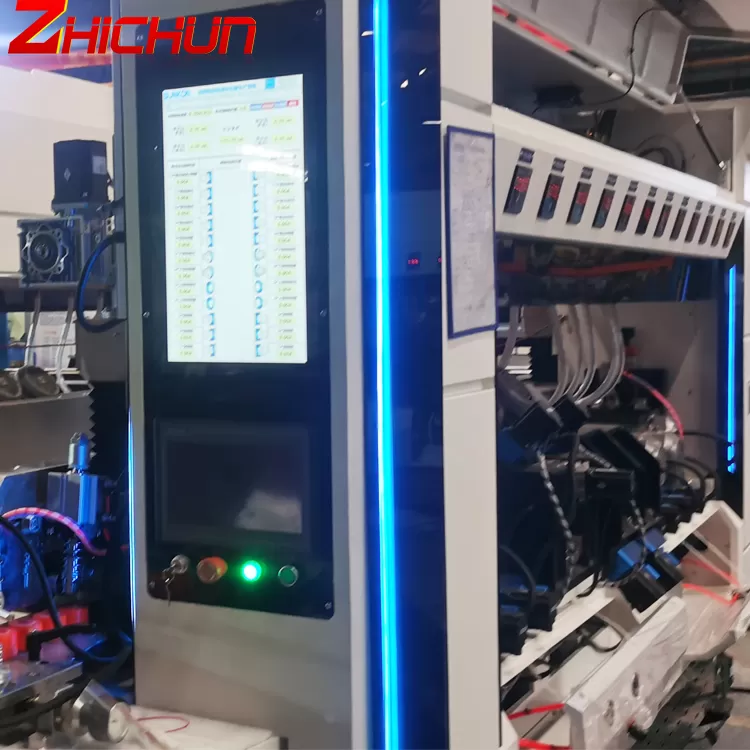

ZHICHUN H Style Touch Screen Industrial PC For Glass chamfering and polishing equipment
advantage
1. Industrial grade display screen
2. The front panel reaches IP65 waterproof and dustproof
3. Capacitive touch screen design (G+G), supporting 10 point touch control
4. Aluminum alloy and sheet metal shell, sturdy, durable, and corrosion-resistant
5. Suitable for embedded installation/wall mounted installation/desktop installation
6. Multiple types of monitor input connections: VGA, HDMI, DVI

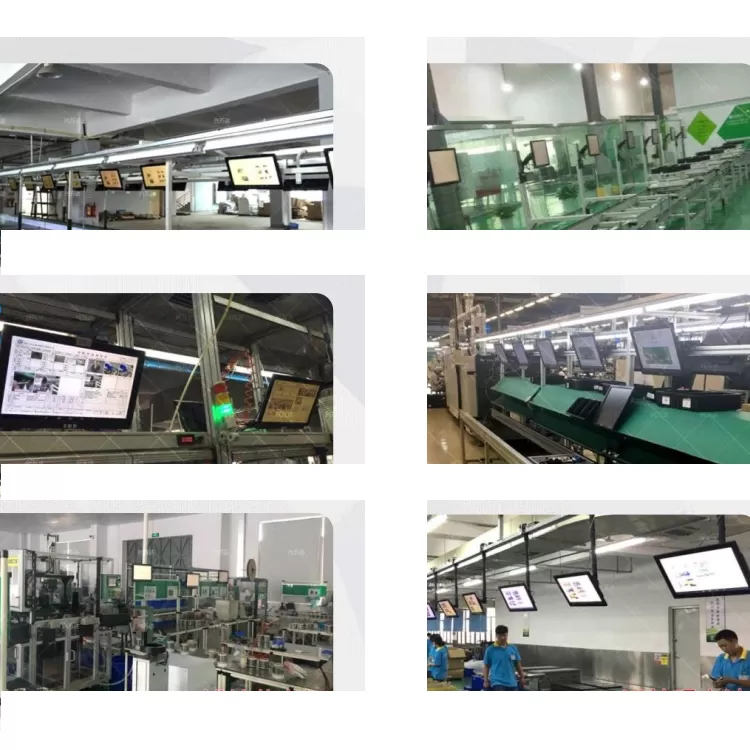

7. Suitable for various industries such as automation equipment, power equipment, detection equipment, laser equipment, CNC equipment, MES workstation, ESOP operation manual, digital factory, etc
产品介绍

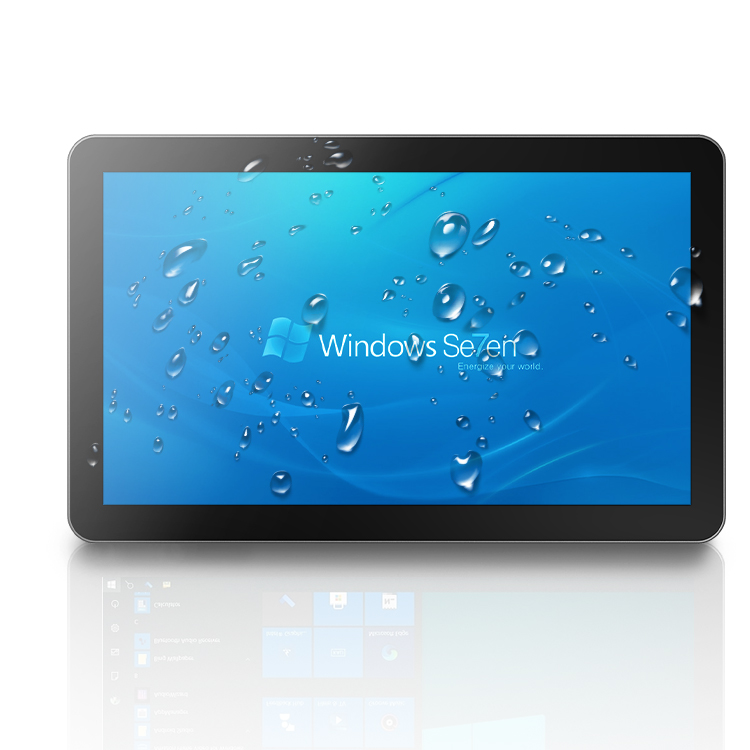

Style Z touch computer is a model of industrial fanless embedded designed based on a capacitive touch screen monitor.
It has tough characteristics such as dustproof, waterproof, and oil resistant.
The display screen is available in 7, 8, 10.1, 10.4, 12.1, 15, 15.6, 17, 19 and 21.5 inches.
PRODUCT SPECIFICATIONS
Basic Parameter
| Sizes | 7 inches |
| Resolution | 1024*600 |
| Back light | LED |
| Brightness | 300nits |
| Dynamic contrast | 1000:1 |
| Touch screen | Capacitive touch |
| Touch point | 10-point touch |
| Respond Time | ≤5ms |
| Luminousness | 85±5% |
| Surface Hardness | 6H |
| Click Lifetime | 50 millions times |
| Viewing Angle | R/L:65(Typ.), U/D:65(Typ) |
| Communication Interface | USB interface |
I/O Interface
| USB | 1*USB type-B |
| HDMI | 1*HDMI |
| VGA | 1*VGA |
| Audio | 1*Line-out |
| Power | 12V DC power input |
Environmental Parameters
| Operating Temperature | -10－+60 |
| Storage Temperature | -20－+70 |
| Relative Humidity | 20%－90% |
General Parameters
| Outline Dimension | 201.8*135.8*34mm(L*W*H) |
| Display Dimension | 156*88mm(L*W) |
| Hole Size | 189.8*123.8mm(L*W) |
| Shell Material | Front panel aluminum alloy + metal middle cover + aluminum alloy rear cover |
| Installation Type | Embedded,Wall-Mounted,Desktop,VESA |
ORDERING INFORMATION
Free accessories
| Accessory | Description |
| Embedded buckle | 4 pcs of embedded buckles+ 4 pcs of screws |
| Adapter | 1 pcs of 12V/5A adapter |
| Power cord | 1 pcs of 1.5m |
| VGA cable | 1 pcs of 1.5m |
| HDMI cable | 1 pcs of 1.5m |
| USB-B cable | 1 pcs of 1.5m |
| Touch pen | 1 pcs |
Optional accessories
| Accessory | Description |
| Power cord | 1 pcs of 3m/5m |
| Wall-mount plate | 1 pcs of wall-mount plate |
| Desktop stand | 1 pcs of desktop stand |
